46114-4240 - Molex

Description: Molex EXTREME LPH-POWER Series 46114 Series Number 1.27mm Pitch 28 Way Straight Heavy Duty Power Connector, Through

Download 46114-4240 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

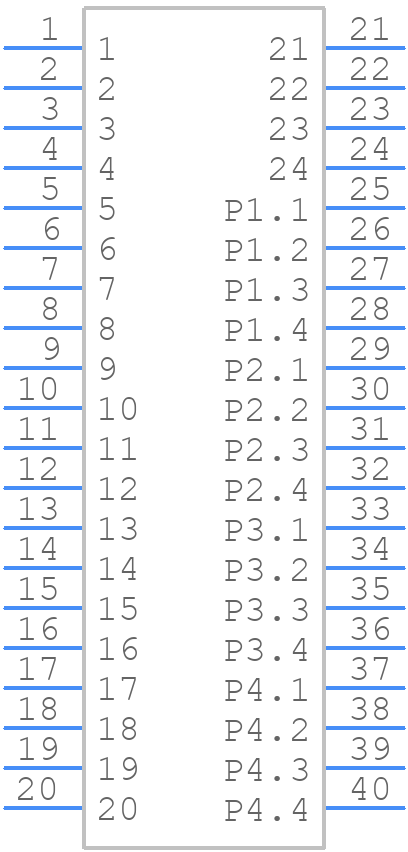

Symbol
46114-4240 - Molex - PCB symbol
click to zoom

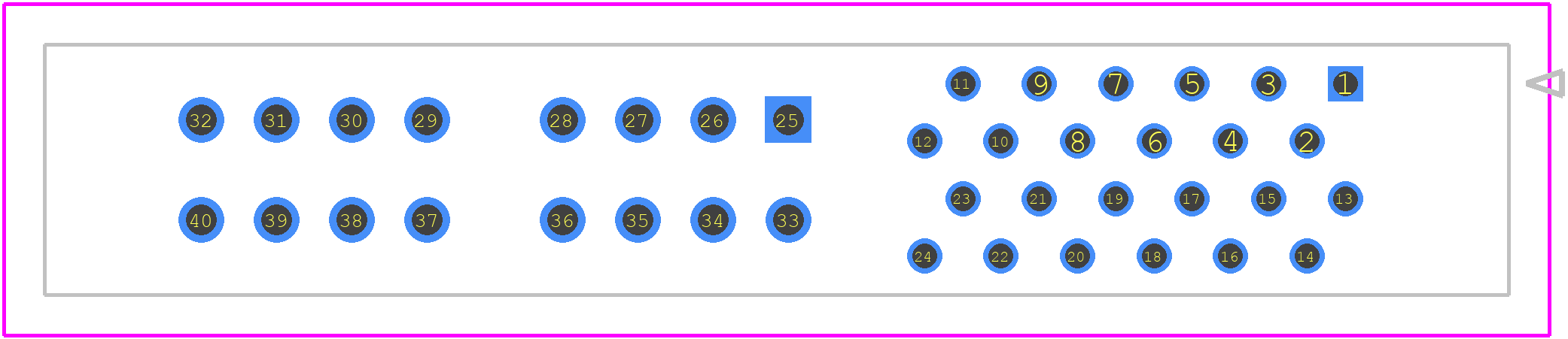

PCB Footprints
46114-4240 - Molex PCB footprint - Other - Other - 46114-4240
click to zoom
3D Models
46114-4240 - Molex - 3D model - Other - 46114-4240
click to zoom

46114-4240 Details

  • Manufacturer Part Number:

    46114-4240

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS: 2.5MM

  • Body Breadth:

    0.328 inch

  • Body Depth:

    0.599 inch

  • Body Length:

    1.915 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S24P4

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    1500VDC V

  • Durability:

    250 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    1.08 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.05 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.91 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    CSA; UL

  • Terminal Length:

    0.099 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    28

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.147 N

46114-4240 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 46114-4240 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 46114-4240 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, consider using additional protection measures, such as conformal coating or potting, for extreme environmental conditions.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 46114-4240 connector. However, you should ensure the wire size is compatible with the connector's terminal design and that the wire can withstand the maximum current rating. Consult with Molex or a qualified engineer for guidance on using non-recommended wire sizes.
  • To ensure reliable connections and prevent terminal screw loosening, use a torque wrench to apply the recommended torque, and consider using a thread-locking compound or adhesive to secure the screws. Additionally, ensure the connector is properly mounted and secured to prevent vibration or movement that could cause the screws to loosen over time.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

46114-4240 Overview

Use the download button to access the 46114-4240 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 46114, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
