46114-8200 - Molex

46114-8200 Details

• Manufacturer Part Number:

  46114-8200

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Molex

• YTEOL:

  8

• Additional Feature:

  TERMINAL PITCH FOR POWER CONTACTS: 2.5MM

• Body Breadth:

  0.328 inch

• Body Depth:

  0.599 inch

• Body Length:

  2.759 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Arrangement:

  S20P8

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  15 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  1500VDC V

• Durability:

  250 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  1.08 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• Mating Contact Pitch:

  0.05 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  YES

• Mounting Option 1:

  LOCKING

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

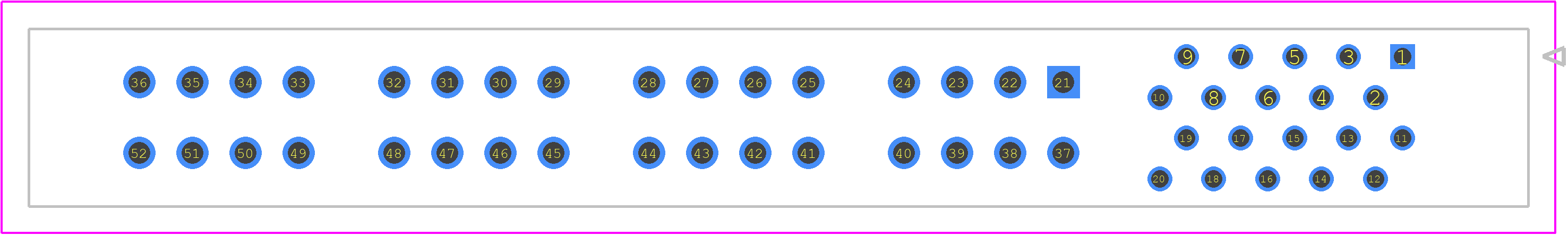

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.91 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1 A

• Reference Standard:

  CSA; UL

• Terminal Length:

  0.099 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  28

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.147 N
