46556-1745 - Molex

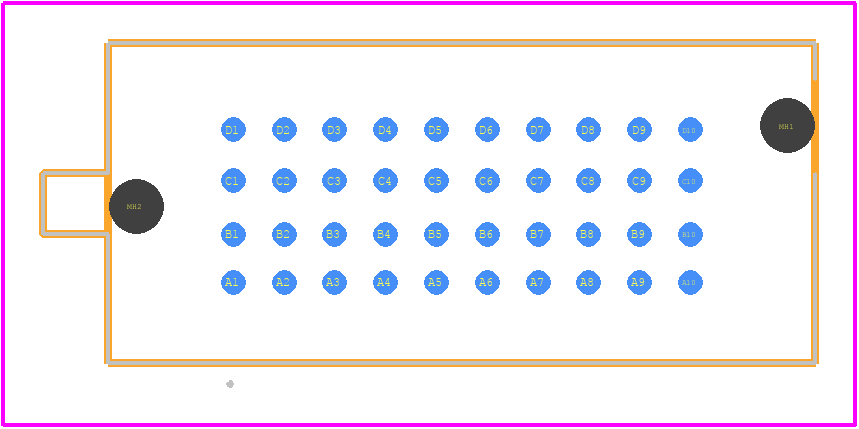

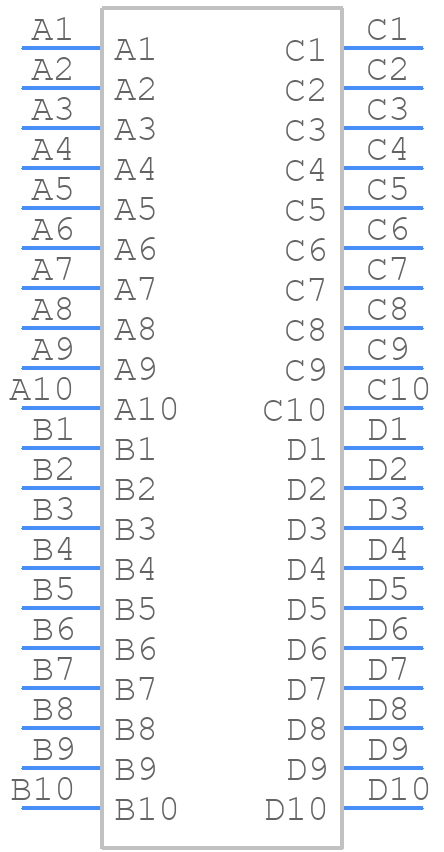

46556-1745 Details

• Manufacturer Part Number:

  46556-1745

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LOW HALOGEN AND ROHS COMPLIANT

• Country Of Origin:

  Malaysia, Mexico, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Molex

• YTEOL:

  9.4

• Additional Feature:

  SOLDER CHARGE, POLARIZED

• Board Mounting Option:

  PEG

• Body Breadth:

  0.278 inch

• Body Depth:

  0.221 inch

• Body Length:

  0.759 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  900VAC V

• Durability:

  100 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .5004 N

• Insulation Resistance:

  25000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.05 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  4

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.27 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  2.7 A

• Reference Standard:

  UL, CSA

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  40

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .139 N
