Part Image

46622-0601 - Molex

Description: Micro-Fit BMI Header, Surface Mount, Single Row, Right-Angle, with Solder Tab, 6 Circuits

Download 46622-0601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
46622-0601 - Molex - PCB symbol
click to zoom
PCB Footprints

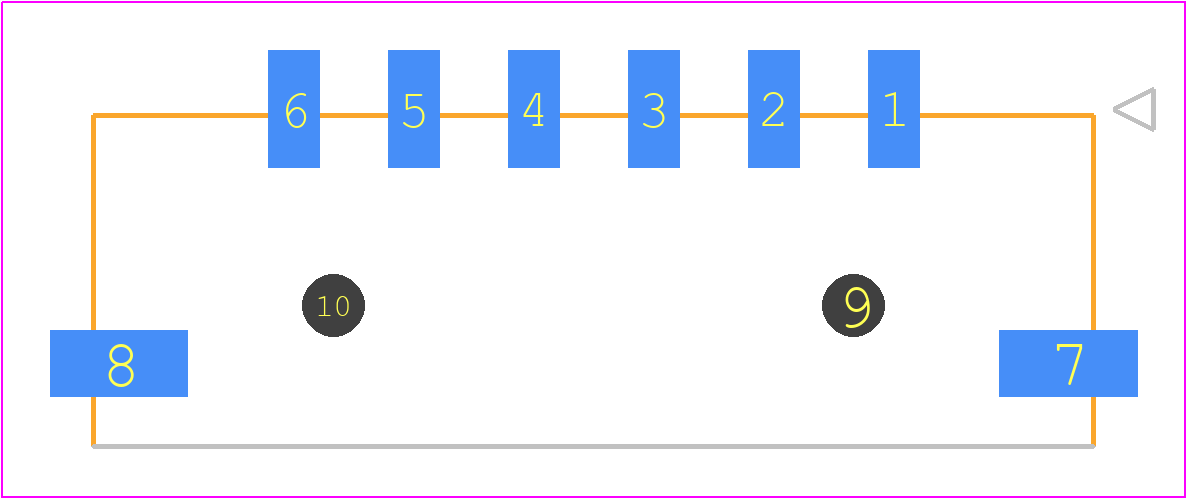

46622-0601 - Molex PCB footprint - Other - Other - 46622-06YY
click to zoom
3D Models
46622-0601 - Molex - 3D model - Other - 46622-06YY
click to zoom

46622-0601 Details

  • Manufacturer Part Number:

    46622-0601

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Body Breadth:

    0.4 inch

  • Body Length:

    0.98 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

46622-0601 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 46622-0601 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 46622-0601 connector is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
  • Yes, the 46622-0601 connector is designed for automated assembly and can be used with standard pick-and-place machines and wire termination equipment.
  • The recommended wire size for the 46622-0601 connector is 24-20 AWG (0.25-0.5 mm²) to ensure reliable connections and minimize wire damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

46622-0601 Overview

Use the download button to access the 46622-0601 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 46622, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
