46765-0301 - Molex

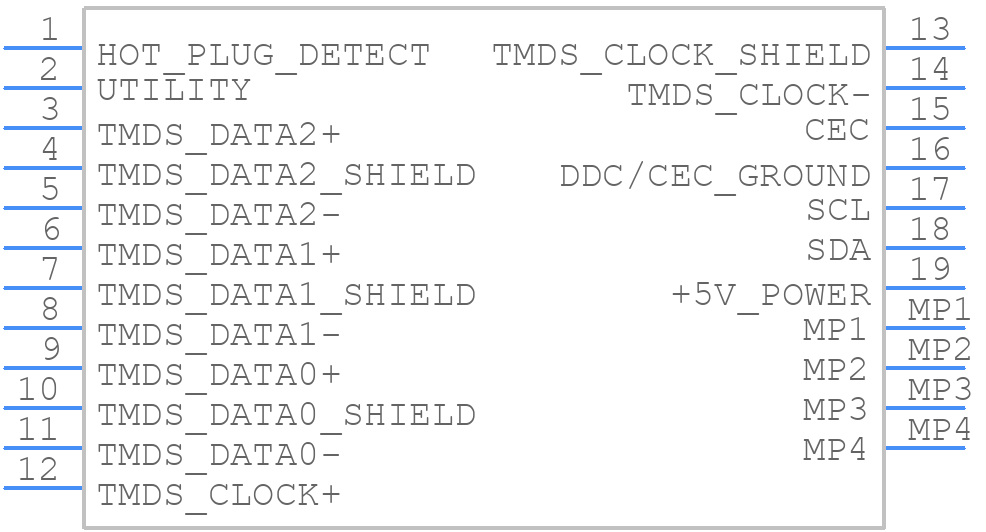

46765-0301 Details

• Manufacturer Part Number:

  46765-0301

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LOW HALOGEN, ROHS AND REACH COMPLIANT

• Country Of Origin:

  Mainland China, Singapore

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Molex

• YTEOL:

  7.77

• Additional Feature:

  POLARIZED, SHIELDED

• Board Mounting Option:

  LOCATING POSTS

• Body Breadth:

  0.114 inch

• Body Depth:

  0.295 inch

• Body Length:

  0.256 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  DISPLAYPORT CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Gold (Au) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Resistance:

  10 mΩ

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  200VAC V

• Durability:

  5000 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  10000000 Ω

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• Plating Thickness:

  15u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.8 A

• Reference Standard:

  CSA, UL

• Shell Finish:

  TIN OVER NICKEL

• Shell Material:

  POLYETHYLENE

• Terminal Pitch:

  0.4064 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  19

• UL Flammability Code:

  94V-0
