46991-1010 - Molex

Description: Mini-Fit Jr. Reflow Solder Capable Header, Right-Angle, Dual Row, 10 Circuits, without Mounting Peg

Download 46991-1010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
46991-1010 - Molex - PCB symbol
click to zoom
PCB Footprints

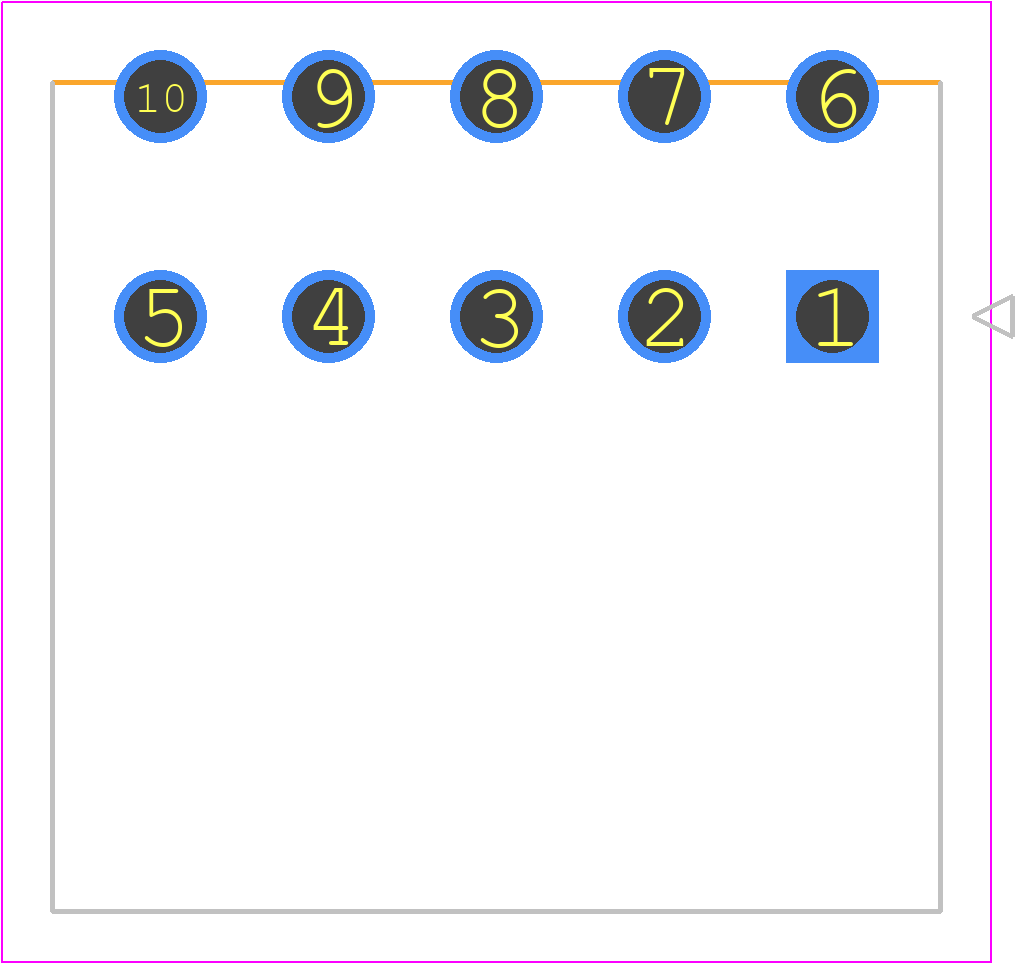

46991-1010 - Molex PCB footprint - Other - Other - 46991-YY10
click to zoom
3D Models
46991-1010 - Molex - 3D model - Other - 46991-YY10
click to zoom

46991-1010 Details

  • Manufacturer Part Number:

    46991-1010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.3

  • Board Mounting Option:

    HOLE .064-.072

  • Body Breadth:

    0.378 inch

  • Body Depth:

    0.796 inch

  • Body Length:

    0.874 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P10

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Plating Thickness:

    100u inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

46991-1010 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 N·m (4.4-13.3 in·lb) for the screws on the 46991-1010 connector, as specified in the Molex application note.
  • Yes, the 46991-1010 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications, such as in automotive or industrial environments.
  • Yes, the 46991-1010 connector is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5, and meets the requirements of the RoHS directive.
  • The operating temperature range of the 46991-1010 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the 46991-1010 connector is designed to withstand harsh environments, including high humidity and exposure to chemicals, and meets the requirements of the IEC 60529 standard for ingress protection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

46991-1010 Overview

Use the download button to access the 46991-1010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 46991, or try a keyword search, such as Power Connectors
