469990712 - Molex

Description: Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 6 Circuits, UL 94V-0, Gold (Au) Plating, Natural, Tray

Download 469990712 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
469990712 - Molex - PCB symbol
click to zoom

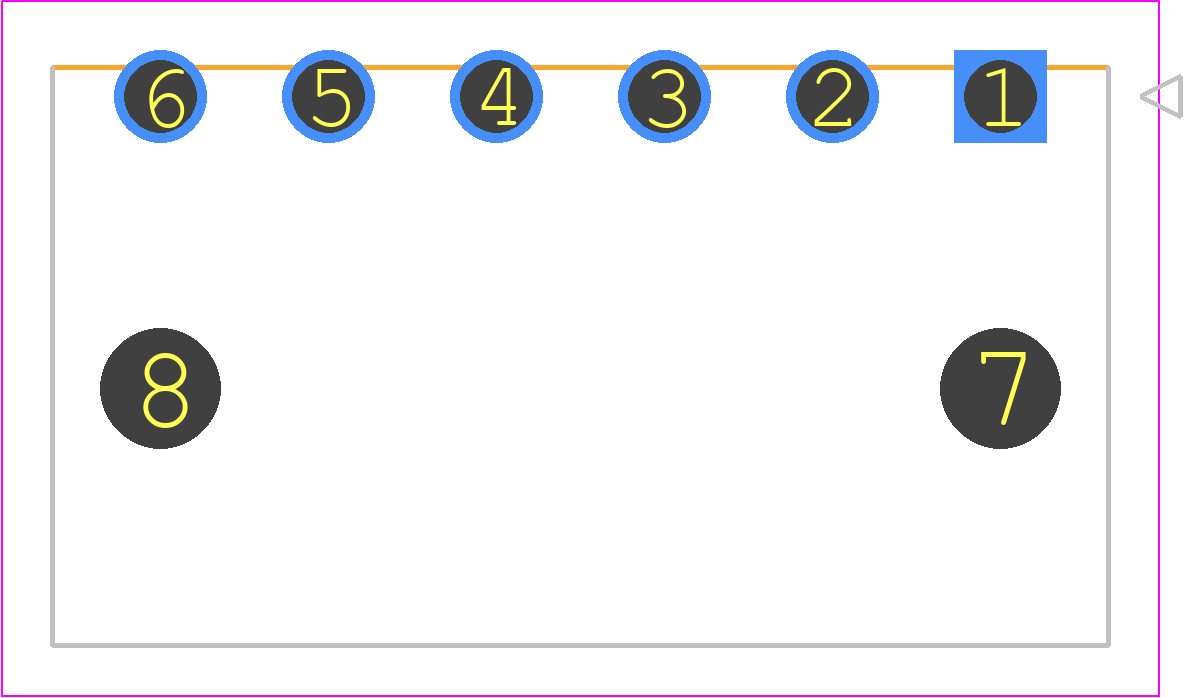

PCB Footprints
469990712 - Molex PCB footprint - Other - Other - 469990712
click to zoom
3D Models
469990712 - Molex - 3D model - Other - 469990712
click to zoom

469990712 Details

  • Manufacturer Part Number:

    469990712

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Body Breadth:

    0.229 inch

  • Body Depth:

    0.547 inch

  • Body Length:

    1.433 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA;IEC;UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

469990712 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the Molex 0469990712 connector is 50-100 cycles, depending on the application and environmental conditions.
  • While the Molex 0469990712 connector is designed to be robust, it's not specifically designed for high-vibration applications. Additional testing and validation may be required to ensure reliability in such environments.
  • The Molex 0469990712 connector is rated for operating temperatures up to 105°C. However, it's essential to consider the specific application and potential thermal stresses to ensure reliable performance.
  • The recommended torque for the screw terminals on the Molex 0469990712 connector is 0.5-1.5 Nm (0.37-1.06 lbf-in). Over-torquing can damage the connector, so it's essential to follow the recommended torque specification.
  • Yes, the Molex 0469990712 connector is designed to be compatible with automated assembly processes, including pick-and-place machines and wire termination equipment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

469990712 Overview

Use the download button to access the 469990712 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 46999, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
