47126 - MYRRA

Description: 1 Output 2.5W Switch Mode Power Supply Transformer, 85 → 265 V ac, 85 → 370 V dc, 24V dc

Download 47126 Model

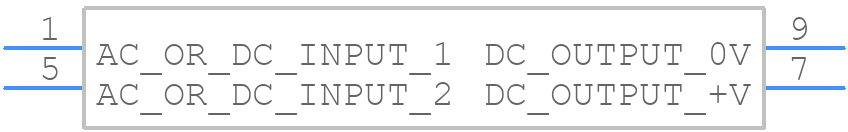

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
47126 - MYRRA PCB footprint - Other - Other - 47126-2
click to zoom
3D Models
47126 - MYRRA  - 3D model - Other - 47126-2
click to zoom

47126 Details

  • Manufacturer Part Number:

    47126

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-9/4

  • ECCN Code:

    EAR99

  • Manufacturer:

    Myrra

  • Additional Feature:

    ALSO REQUIRE 85V TO 370V DC VOLTAGE

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • JESD-30 Code:

    R-XDMA-P4

  • Length:

    31.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    24.48 V

  • Output Voltage-Min:

    23.52 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    22.3 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    5 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    2.5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    26.7 mm

47126 Frequently Asked Questions (FAQs)

  • Myrra recommends a PCB layout with a solid ground plane and thermal vias under the device to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
  • To ensure reliable operation in high-vibration environments, Myrra recommends using a secure mounting method, such as screwing or adhesive mounting, and ensuring that the PCB is properly secured to the chassis or enclosure.
  • Myrra recommends limiting voltage transients on the input pins to 10% of the rated voltage to prevent damage to the device. Exceeding this limit may result in permanent damage or reduced lifespan.
  • Yes, the 47126 can be used in a parallel configuration to increase output current. However, Myrra recommends ensuring that the devices are properly matched and that the output currents are balanced to prevent uneven stress and potential damage.
  • Myrra recommends using a TVS (Transient Voltage Suppressor) diode or a multi-layer varistor (MLV) for ESD protection on the input and output pins. This will help prevent damage from electrostatic discharge events.
