47151-0001 - Molex

Description: 19 Way Female Right Angle HDMI Connector 40 V dc

Download 47151-0001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

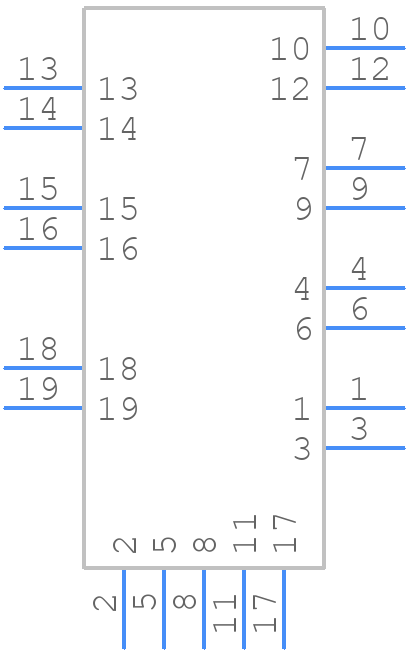

47151-0001 - Molex - PCB symbol
click to zoom
PCB Footprints

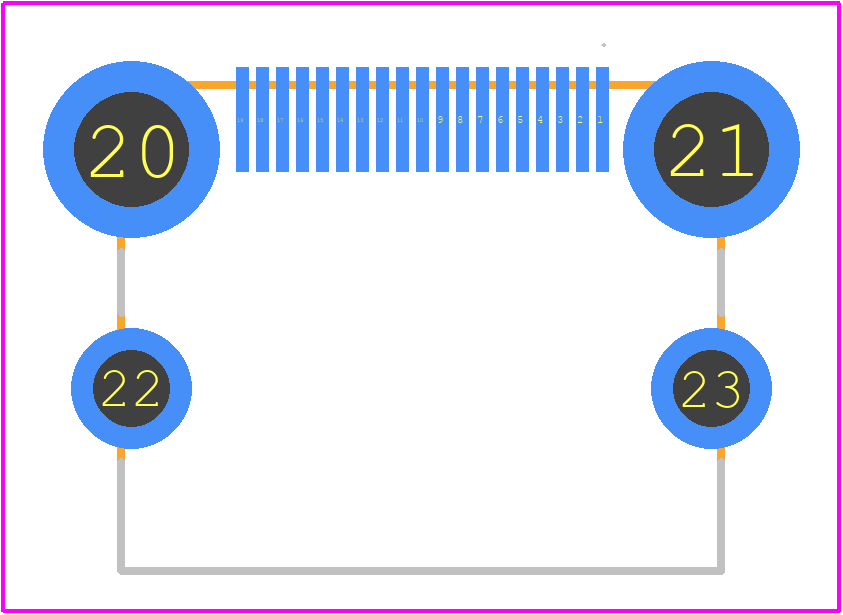

47151-0001 - Molex PCB footprint - Other - Other - 47151-0001
click to zoom
3D Models
47151-0001 - Molex - 3D model - Other - 47151-0001
click to zoom

47151-0001 Details

  • Manufacturer Part Number:

    47151-0001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    HDMI CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN BISMUTH

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYPHENYLENE

  • JESD-609 Code:

    e6

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    19

47151-0001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 47151-0001 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 47151-0001 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 47151-0001 is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 47151-0001 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

47151-0001 Overview

Use the download button to access the 47151-0001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 47151, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
