47151-1061 - Molex

Description: HDMI, Displayport & DVI Connectors 1.0 HDMI R/A HEADER DER ASS'Y WITH MYLAR

Download 47151-1061 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

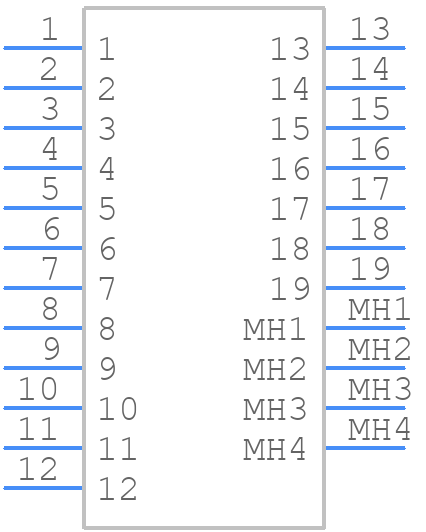

47151-1061 - Molex - PCB symbol
click to zoom
PCB Footprints

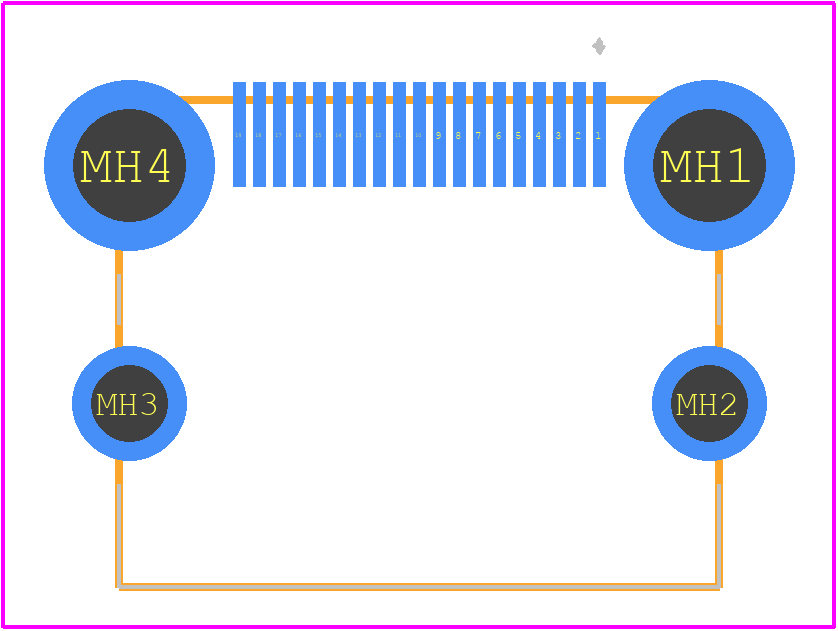

47151-1061 - Molex PCB footprint - Other - Other - 47151-1061-2
click to zoom
3D Models
47151-1061 - Molex - 3D model - Other - 47151-1061-2
click to zoom

47151-1061 Details

  • Manufacturer Part Number:

    47151-1061

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    DISPLAYPORT CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    TIN BISMUTH OVER NICKEL

  • Contact Material:

    COPPER ALLOY

47151-1061 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 47151-1061 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The connector is rated for indoor use, but it can be used outdoors if properly sealed and protected from environmental factors such as moisture and UV exposure.
  • The maximum wire size that can be used with this connector is 18 AWG (1.0 mm²).
  • The connector is designed for use with PVC or Teflon-insulated wires. Using wires with other insulation materials may affect the connector's performance and reliability.
