47151-1081 - Molex

Description: HDMI, Displayport & DVI Connectors 1.0 HDMI R/A HEADER DMI R/A HEADER ASSY.

Download 47151-1081 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

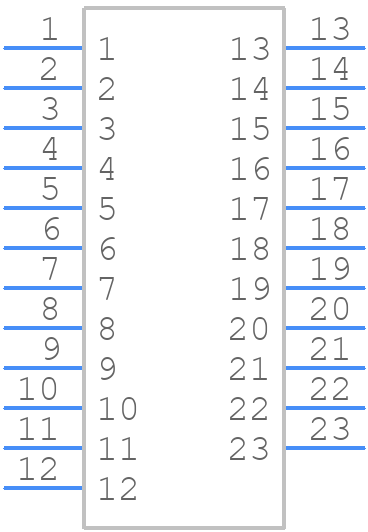

47151-1081 - Molex - PCB symbol
click to zoom
PCB Footprints

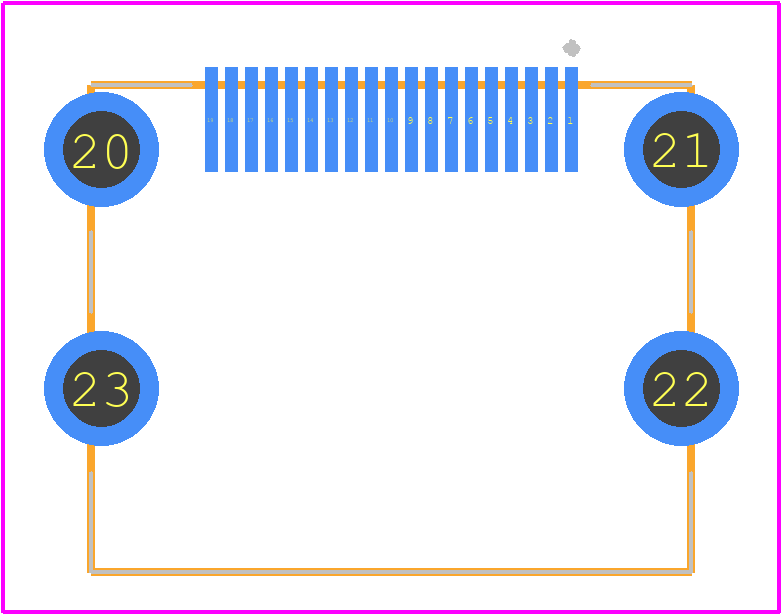

47151-1081 - Molex PCB footprint - Other - Other - 47151-1081
click to zoom
3D Models
47151-1081 - Molex - 3D model - Other - 47151-1081
click to zoom

47151-1081 Details

  • Manufacturer Part Number:

    47151-1081

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    DISPLAYPORT CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    TIN BISMUTH

  • Contact Material:

    COPPER ALLOY

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

47151-1081 Overview

Use the download button to access the 47151-1081 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 47151, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
