47152 - MYRRA

Description: Electronic Transformer 5Vdc regulated

Download 47152 Model

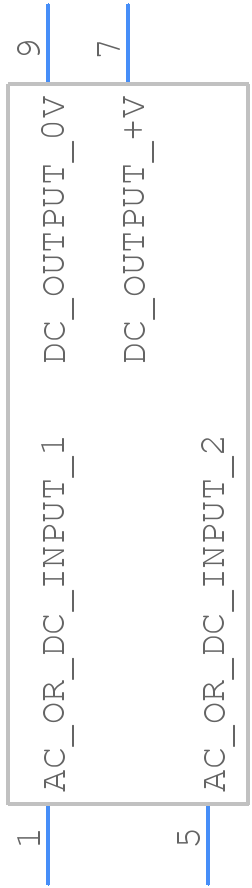

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

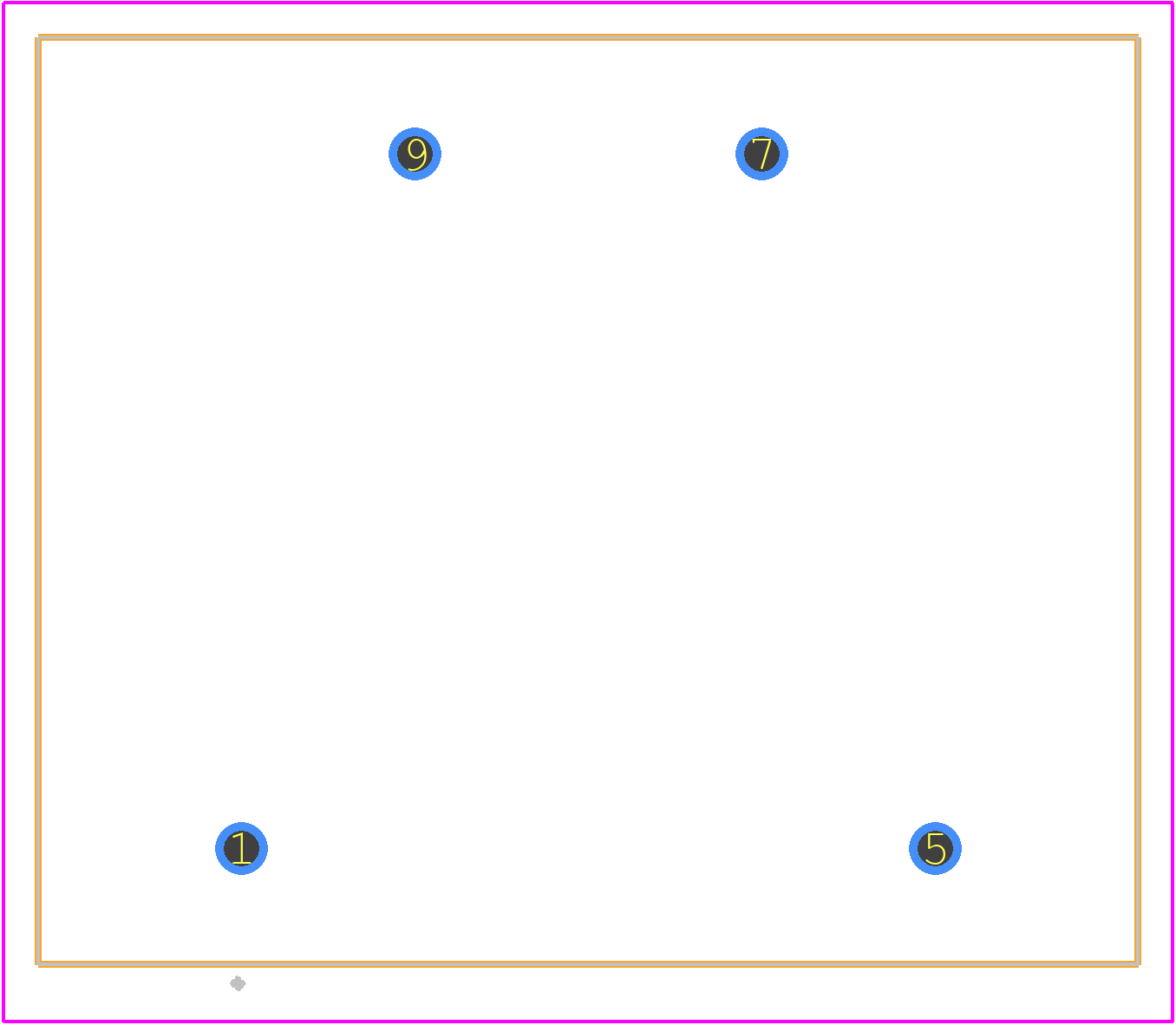

47152 - MYRRA PCB footprint - Other - Other - 47121_1
click to zoom
3D Models
47152 - MYRRA  - 3D model - Other - 47121_1
click to zoom

47152 Details

  • Manufacturer Part Number:

    47152

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-9/4

  • ECCN Code:

    EAR99

  • Manufacturer:

    Myrra

  • Additional Feature:

    ALSO REQUIRE 85V TO 370V DC VOLTAGE

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • JESD-30 Code:

    R-XDMA-P4

  • Length:

    31.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    22.3 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    5 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    4.5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    26.7 mm

47152 Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern around the IC's thermal pad is recommended for optimal thermal performance.
  • Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal gradients and hotspots.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for optimal performance and stability.
  • Use a shielded enclosure, keep sensitive components away from the IC, and use a common-mode choke or ferrite bead on the input lines to minimize EMI.
  • The maximum allowed voltage drop across the input capacitor is 1V to ensure reliable operation and prevent damage to the IC.
