47346-1015 - Molex

Description: Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port T/R

Download 47346-1015 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

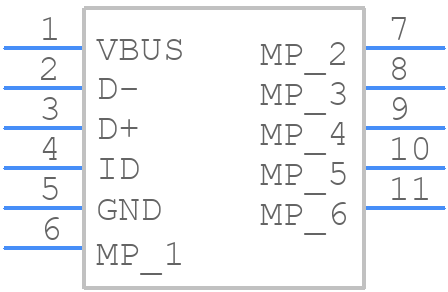

47346-1015 - Molex - PCB symbol
click to zoom
PCB Footprints
47346-1015 - Molex PCB footprint - Other - Other - 47346-1015-1
click to zoom
3D Models
47346-1015 - Molex - 3D model - Other - 47346-1015-1
click to zoom

47346-1015 Details

  • Manufacturer Part Number:

    47346-1015

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • JESD-609 Code:

    e3
