475PHC400K - ILLINOIS CAPACITOR

Description: CAPACITOR POLYPROPYLENE PP FILM 4.7UF, 400V, 10%, AXIAL; Capacitance:4.7µF; Voltage Rating:400V; Dielectric Type:Metallized PP; Capacitance Tolerance:± 10%; Product Range:PHC Series; Capacitor Case Style:-; Lead Spacing:-; ESR:7.7ohmRoHS Compliant: Yes

Download 475PHC400K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
475PHC400K - ILLINOIS CAPACITOR - PCB symbol
click to zoom
PCB Footprints

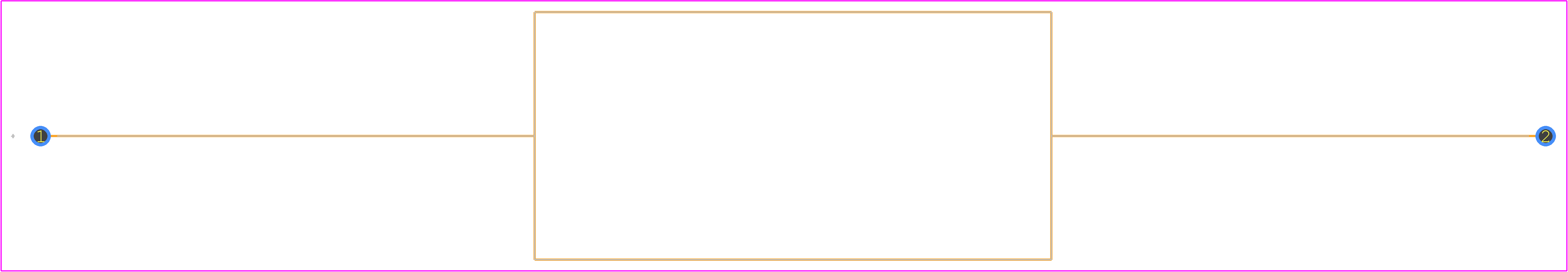

475PHC400K - ILLINOIS CAPACITOR PCB footprint - Other - Other - 475PHC400K-7
click to zoom
3D Models
475PHC400K - ILLINOIS CAPACITOR - 3D model - Other - 475PHC400K-7
click to zoom

475PHC400K Details

  • Manufacturer Part Number:

    475PHC400K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    AXIAL LEADED, LEAD FREE

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.60

  • Manufacturer:

    Illinois Capacitor Inc

  • Additional Feature:

    RATED AC VOLTAGE (V): 250

  • Capacitance:

    4.7 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    250 V

  • Rated (DC) Voltage (URdc):

    400 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

475PHC400K Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. Exceeding these limits can damage the capacitor.
  • Yes, the 475PHC400K is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and installation procedures to ensure the capacitor's reliability.
  • Yes, the 475PHC400K is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • The shelf life of the 475PHC400K is 2 years from the date of manufacture when stored in its original packaging and under normal environmental conditions.
  • While the 475PHC400K is designed to operate in a wide range of temperatures, it's not recommended for use in extremely humid or high-moisture environments. If exposure to moisture is unavoidable, consider using a conformal coating or potting compound to protect the capacitor.
