- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 47732-0361
- Part Number 47732-0361
- Manufacturer Molex
- Pin Count 38
- Part Category Connector
- Package Category Other
- Footprint Name Other - 47732-0361-2
- Released Date Apr 30, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
47732-0361 Details
-
Manufacturer Part Number:
47732-0361
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Molex
47732-0361 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
-
Yes, the 47732-0361 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
-
The 47732-0361 has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors.
-
The 47732-0361 can accommodate wire sizes up to 18 AWG (1.0 mm²).
-
The 47732-0361 is rated for operating temperatures up to 125°C (257°F), but it's essential to consider derating and thermal management in high-temperature applications.
Trust Checks
Expert Contribution
System Verified
Community Approved
47732-0361 Overview

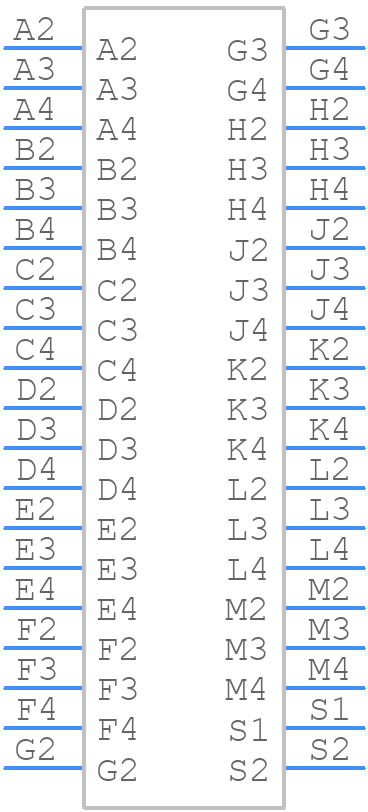

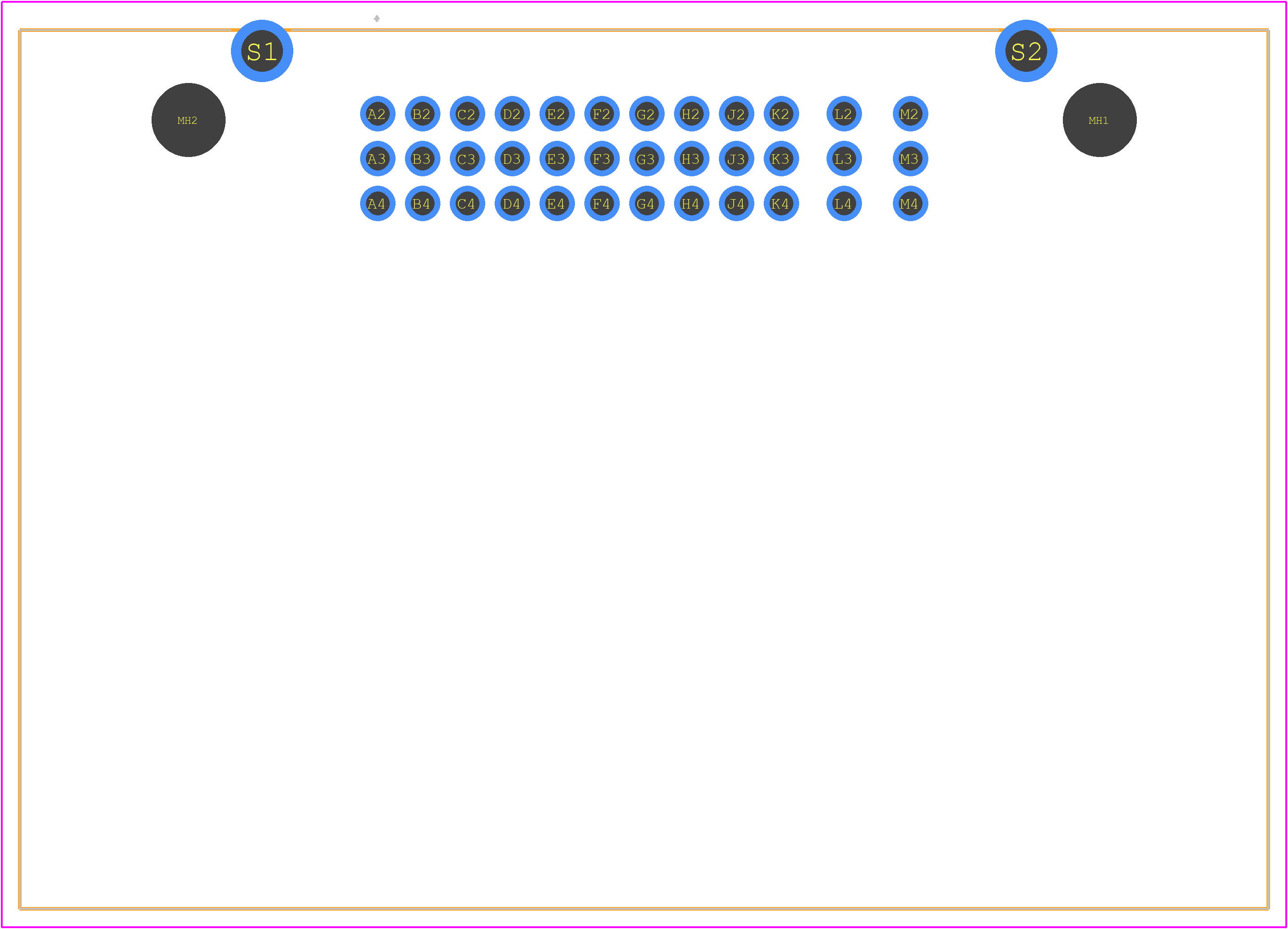

Use the download button to access the 47732-0361 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 47732,
or try a keyword search, such as Combination Line Connectors
