47745-0100 - Molex

Description: CMC High Current Right Angle Header 28 Positions

Download 47745-0100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

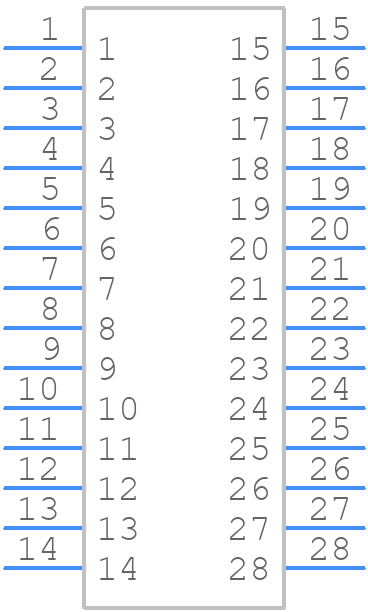

Symbol
47745-0100 - Molex - PCB symbol
click to zoom

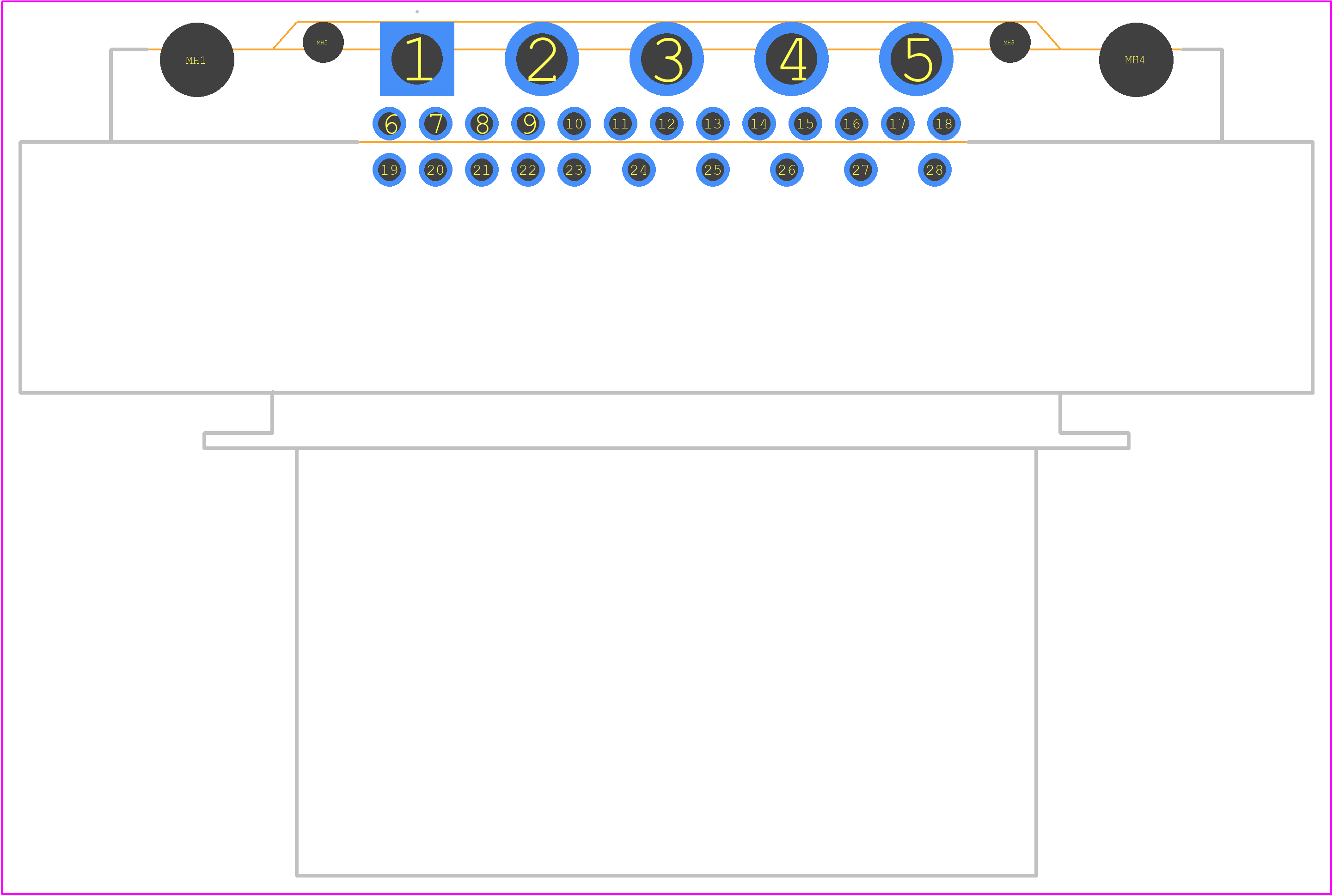

PCB Footprints
47745-0100 - Molex PCB footprint - Other - Other - 47745-0100-7
click to zoom
3D Models
47745-0100 - Molex - 3D model - Other - 47745-0100-7
click to zoom

47745-0100 Details

  • Manufacturer Part Number:

    47745-0100

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Molex

47745-0100 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 477450100 connector is designed to withstand vibrations up to 10G (ISO 16750-3) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 477450100 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 477450100 connector meets the requirements of the automotive industry, including ISO 16750-2 and IATF 16949.
  • The 477450100 connector is rated for up to 13A per contact, making it suitable for high-current applications. However, it's essential to consider the wire gauge, insulation, and overall system design to ensure safe and reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

47745-0100 Overview

Use the download button to access the 47745-0100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 47745, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
