48022 - MYRRA

Description: 120 → 370 V dc, 85 → 265 V ac 1 Output PCB Mount PCB Transformer, 1 → 3W

Download 48022 Model

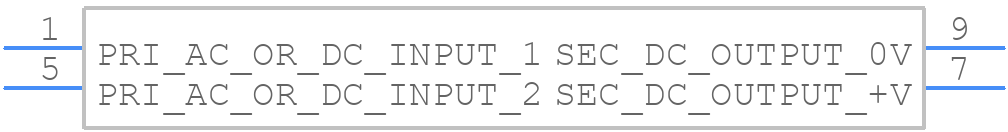

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
48022 - MYRRA PCB footprint - Other - Other - 48022-5
click to zoom
3D Models
48022 - MYRRA  - 3D model - Other - 48022-5
click to zoom

48022 Details

  • Manufacturer Part Number:

    48022

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-10/4 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Myrra

  • Additional Feature:

    Also Operate with 120-370VDC

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, IEC, UL

  • Efficiency (Main Output):

    65%

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    100 V

  • JESD-30 Code:

    S-PDMA-P4

  • Length:

    25 mm

  • Line Regulation-Max:

    3%

  • Load Regulation-Max:

    5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT; OUTPUT OVER CURRENT

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Screening Level:

    IEC 62368-1

  • Seated Height-Max:

    16.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    3.05 s

  • Width:

    25 mm

48022 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency components away from the power plane and use a star topology for the power supply.
  • Use a common ground plane and ensure that the transmission lines are properly terminated. Also, use a shielded cable and keep the cable length as short as possible to minimize electromagnetic interference.
  • The 48022 can operate safely between -40°C to 85°C. However, it's recommended to keep the operating temperature between 0°C to 70°C for optimal performance and reliability.
  • Use a logic analyzer or an oscilloscope to monitor the signal lines. Check the power supply voltage and ensure it's within the recommended range. Also, verify that the clock signal is stable and within the specified frequency range.
  • Yes, the 48022 is designed to withstand vibrations up to 10G. However, it's recommended to use a secure mounting mechanism and ensure the PCB is properly secured to the chassis to prevent damage.
