48023 - MYRRA

Description: AC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid

Download 48023 Model

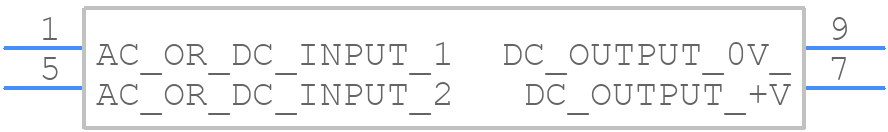

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
48023 - MYRRA PCB footprint - Other - Other - 48023-3
click to zoom
3D Models
48023 - MYRRA  - 3D model - Other - 48023-3
click to zoom

48023 Details

  • Manufacturer Part Number:

    48023

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-10/4 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Myrra

  • Additional Feature:

    Also Operate with 120-370VDC

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, IEC, UL

  • Efficiency (Main Output):

    70%

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    100 V

  • JESD-30 Code:

    S-PDMA-P4

  • Length:

    25 mm

  • Line Regulation-Max:

    3%

  • Load Regulation-Max:

    5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.33 A

  • Output Voltage-Max:

    9.45 V

  • Output Voltage-Min:

    8.55 V

  • Output Voltage-Nom:

    9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT; OUTPUT OVER CURRENT

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Screening Level:

    IEC 62368-1

  • Seated Height-Max:

    16.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    3.05 s

  • Width:

    25 mm
