4816P-T01-102LF - Bourns

Description: Res Net SMD Med Body, 16pins, T01,1K Bourns Isolated SMT Resistor Array 1kΩ ±2% 8 Resistors, 1.28W Total, SOM package 4800P Standard SMT

Download 4816P-T01-102LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

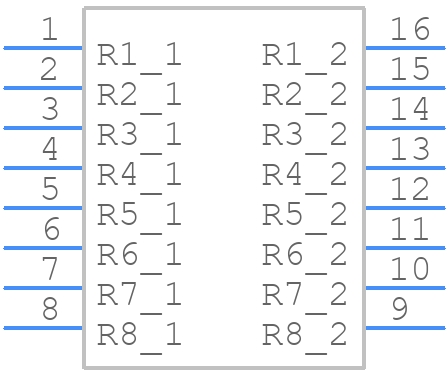

4816P-T01-102LF - Bourns - PCB symbol
click to zoom
PCB Footprints
4816P-T01-102LF - Bourns PCB footprint - Small Outline Packages - Small Outline Packages - 4816P
click to zoom
3D Models
4816P-T01-102LF - Bourns - 3D model - Small Outline Packages - 4816P
click to zoom

4816P-T01-102LF Details

  • Manufacturer Part Number:

    4816P-T01-102LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.10

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    8

  • Construction:

    Rectangular

  • Element Power Dissipation:

    0.16 W

  • First Element Resistance:

    1000 Ω

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    2.03 mm

  • Package Length:

    11.18 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Package Width:

    5.59 mm

  • Packing Method:

    TUBE

  • Rated Power Dissipation (P):

    1.28 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    1000 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Second/Last Element Resistance:

    1000 Ω

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Shape:

    GULL WING

  • Tolerance:

    2%

  • Working Voltage:

    50 V

4816P-T01-102LF Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimal signal loss, and reduced electromagnetic interference (EMI).
  • The 4816P-T01-102LF is designed to provide excellent high-frequency noise suppression and EMI filtering. The component's internal construction and materials are optimized to minimize electromagnetic radiation and susceptibility.
  • The 4816P-T01-102LF is rated for operation from -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. Consult the datasheet and application notes for specific guidance.
  • Yes, the 4816P-T01-102LF is suitable for high-reliability and safety-critical applications. Bourns Inc. provides detailed documentation and support for these types of applications. However, it's crucial to consult with Bourns' technical support and follow their guidelines for specific requirements.
  • Lead times and availability may vary depending on the region, distributor, and quantity required. It's recommended to check with authorized distributors or Bourns Inc. directly for the most up-to-date information on lead times and availability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4816P-T01-102LF Overview

Use the download button to access the 4816P-T01-102LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4816P, or try a keyword search, such as Array/Network Resistors
