4818-3000-CP footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

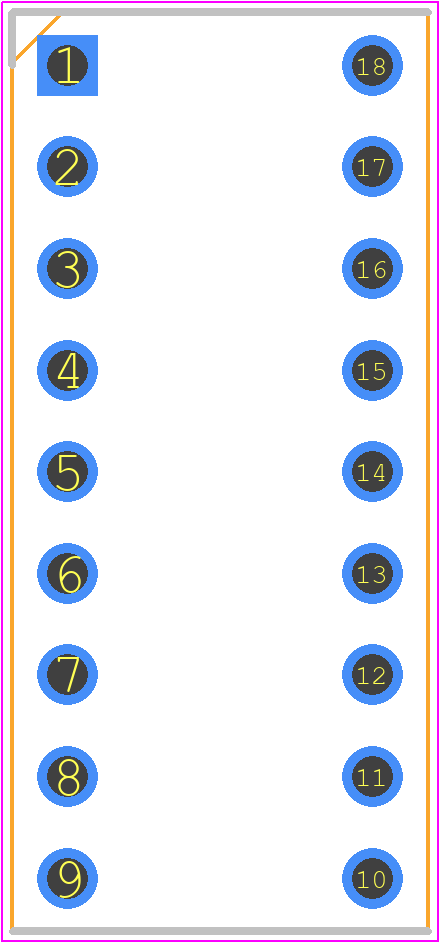

4818-3000-CP - 3M PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 4818-3000-CP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 4818-3000-CP
Part Number 4818-3000-CP
Manufacturer 3M
Pin Count 18
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 4818-3000-CP
Released Date Sep 12, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

4818-3000-CP Details

Manufacturer Part Number:
4818-3000-CP
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
13 Weeks, 4 Days
Manufacturer:
3M Interconnect
YTEOL:
7.3
Additional Feature:
STANDARD: UL94V-0, 3M
Body Breadth:
0.4 inch
Body Depth:
0.2 inch
Body Length:
0.895 inch
Contact Configuration:
RECTANGLE
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
NOT SPECIFIED
Contact Style:
LEAF
Current Rating:
1 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP18
Dielectric Withstanding Voltage:
100VAC V
Housing Material:
GLASS FILLED POLYESTER
Insulation Resistance:
5000000000 Ω
JESD-609 Code:
e3
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
18
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.30000000000000004 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

4818-3000-CP Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for the screw terminals, but it's always best to consult the specific application requirements and 3M's guidelines.
Yes, the 4818-3000-CP is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure connections to prevent damage or disconnection.
The 4818-3000-CP has a IP67 rating, making it suitable for outdoor use and harsh environmental conditions. However, it's crucial to follow proper sealing and installation procedures to maintain the IP67 rating.
The 4818-3000-CP is designed to mate with other 3M Interconnect products, but compatibility with other manufacturers' connectors is not guaranteed. It's recommended to verify compatibility before using connectors from different manufacturers.
The 4818-3000-CP has an operating temperature range of -40°C to 105°C (-40°F to 221°F), making it suitable for a wide range of applications.

Trust Checks

Community Provided

System Verified

Community Approved

4818-3000-CP Overview

Use the download button to access the 4818-3000-CP schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 4818-, or try a keyword search, such as Sockets and Chip Carriers
