4818-3004-CP footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

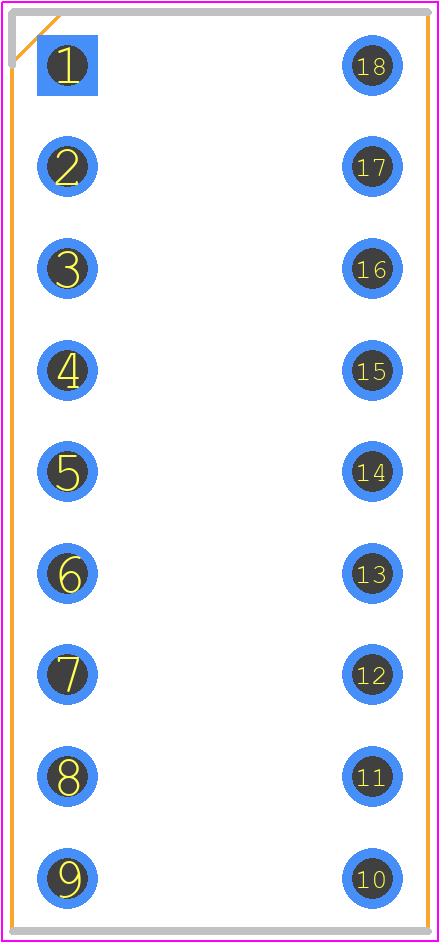

4818-3004-CP - 3M PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 4818-3004-CP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 4818-3004-CP
Part Number 4818-3004-CP
Manufacturer 3M
Pin Count 18
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 4818-3004-CP
Released Date Dec 30, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

4818-3004-CP Details

Manufacturer Part Number:
4818-3004-CP
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
12 Weeks
Manufacturer:
3M Interconnect
YTEOL:
7.3
Additional Feature:
STANDARD: UL94V-0, 3M
Body Breadth:
0.4 inch
Body Depth:
0.2 inch
Body Length:
0.895 inch
Contact Configuration:
RECTANGLE
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
NOT SPECIFIED
Contact Style:
LEAF
Current Rating:
1 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP18
Dielectric Withstanding Voltage:
100VAC V
Housing Material:
GLASS FILLED POLYESTER
Insulation Resistance:
5000000000 Ω
JESD-609 Code:
e3
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
18
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.30000000000000004 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

4818-3004-CP Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 N·m (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 4818-3004-CP connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10-2000 Hz. However, it's recommended to consult with a 3M representative or perform additional testing to ensure the connector meets the specific requirements of your application.
The operating temperature range for the 4818-3004-CP connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
The 4818-3004-CP connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's not recommended for use in environments with exposure to harsh chemicals or prolonged immersion in water. Consult with a 3M representative for guidance on using this connector in specific harsh environments.
The 4818-3004-CP connector is rated for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on the application, usage, and environmental conditions.
