4820-3004-CP - 3M

4820-3004-CP Details

• Manufacturer Part Number:

  4820-3004-CP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  13 Weeks, 4 Days

• Manufacturer:

  3M Interconnect

• YTEOL:

  7

• Additional Feature:

  STANDARD: UL94V-0, 3M

• Body Breadth:

  0.4 inch

• Body Depth:

  0.2 inch

• Body Length:

  0.995 inch

• Contact Configuration:

  RECTANGLE

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Contact Material:

  NOT SPECIFIED

• Contact Style:

  LEAF

• Current Rating:

  1 A

• Device Socket Type:

  IC SOCKET

• Device Type Used On:

  DIP20

• Dielectric Withstanding Voltage:

  100VAC V

• Housing Material:

  GLASS FILLED POLYESTER

• Insulation Resistance:

  5000000000 Ω

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.1 inch

• Mounting Style:

  STRAIGHT

• Number of Contacts:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

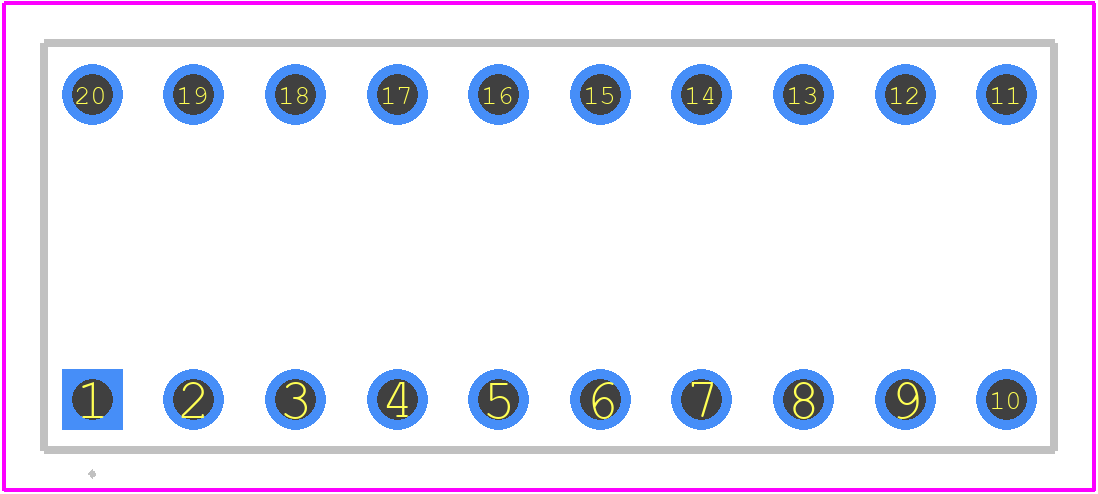

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  0.30000000000000004 mm

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER
