4820P-1-102LF - Bourns

Description: Res Thick Film NET 1K Ohm 2% 1.6W ±100ppm/C ISOL Molded 20-Pin SOM Gull Wing SMD Automotive T/R

Download 4820P-1-102LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

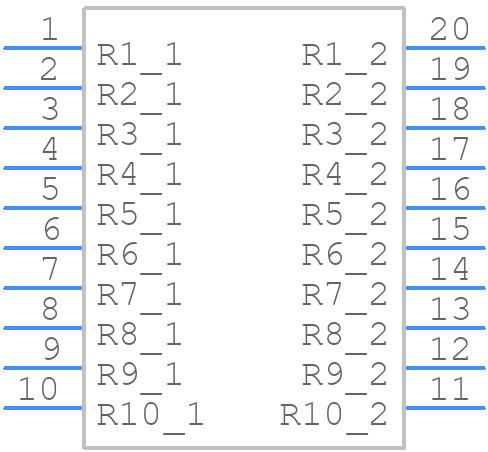

4820P-1-102LF - Bourns - PCB symbol
click to zoom
PCB Footprints
4820P-1-102LF - Bourns PCB footprint - Small Outline Packages - Small Outline Packages - 4820P-1-102LF
click to zoom
3D Models
4820P-1-102LF - Bourns - 3D model - Small Outline Packages - 4820P-1-102LF
click to zoom

4820P-1-102LF Details

  • Manufacturer Part Number:

    4820P-1-102LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.20

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.9

  • Construction:

    Chip

  • Element Power Dissipation:

    0.16 W

  • First Element Resistance:

    1000 Ω

  • JESD-609 Code:

    e2

  • Lead Spacing:

    1.27 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    10

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    2.03 mm

  • Package Length:

    13.72 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    5.59 mm

  • Packing Method:

    TR

  • Rated Power Dissipation (P):

    1.6 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    1000 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    2254

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Shape:

    GULL WING

  • Tolerance:

    2%

  • Working Voltage:

    50 V
