4828-6000-CP - 3M

Description: 3M, 4800 2.54mm Pitch Straight 28 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 1A

Download 4828-6000-CP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4828-6000-CP - 3M - PCB symbol
click to zoom
PCB Footprints

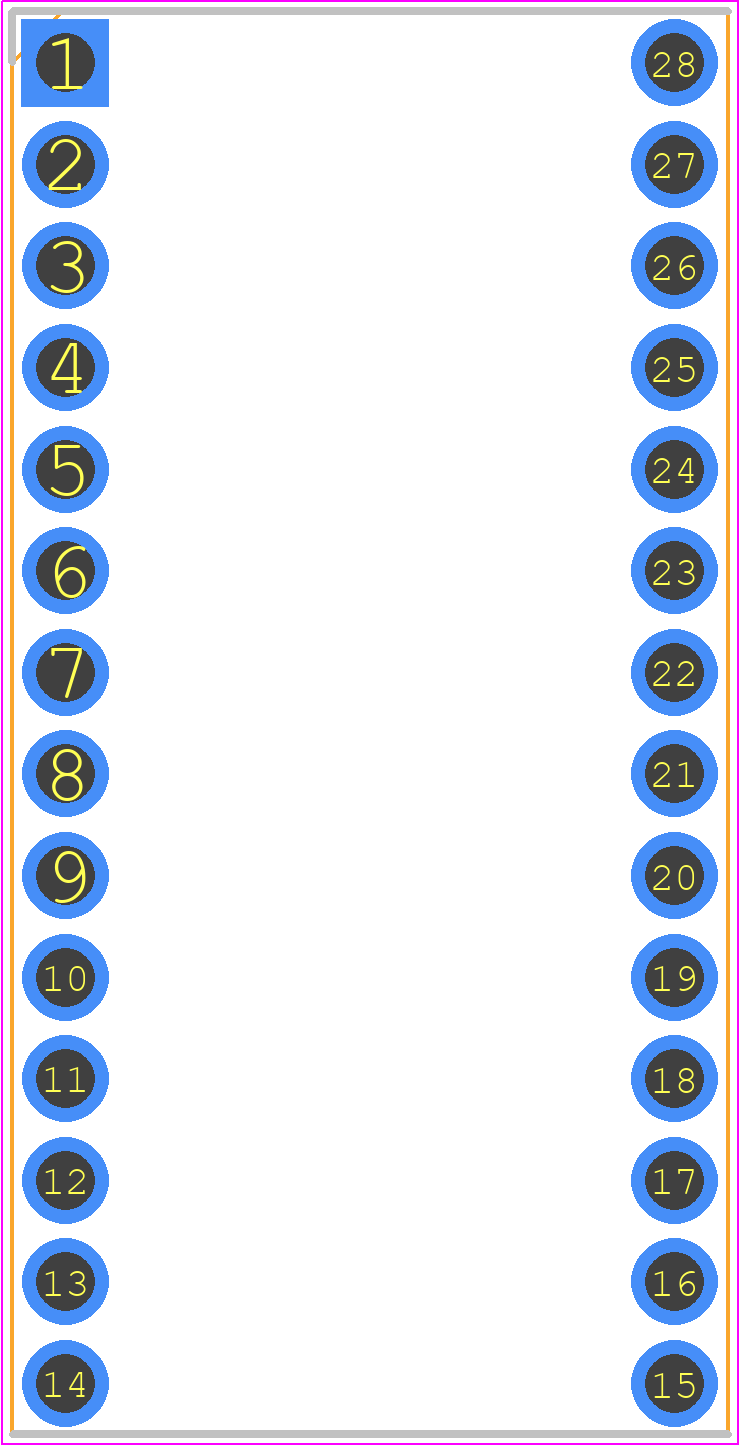

4828-6000-CP - 3M PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 4828
click to zoom
3D Models
4828-6000-CP - 3M - 3D model - Dual-In-Line Sockets - 4828
click to zoom

4828-6000-CP Details

  • Manufacturer Part Number:

    4828-6000-CP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL94V-0, 3M

  • Body Breadth:

    0.7 inch

  • Body Depth:

    0.2 inch

  • Body Length:

    1.395 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    LEAF

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Dielectric Withstanding Voltage:

    100VAC V

  • Housing Material:

    GLASS FILLED POLYESTER

  • Insulation Resistance:

    5000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

4828-6000-CP Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for the screw terminals, but it's always best to consult the specific application requirements and 3M's documentation for precise guidance.
  • Yes, the 4828-6000-CP connector is designed to withstand moderate vibration levels. However, it's essential to ensure proper mounting and securement to prevent connector damage or disconnection. Consult 3M's documentation and perform thorough testing for your specific application.
  • The 4828-6000-CP connector is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F). However, it's crucial to consider the specific application requirements and potential thermal stresses.
  • The 4828-6000-CP connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to ensure proper sealing and protection to maintain the connector's integrity in humid or wet environments.
  • The 4828-6000-CP connector is designed for use with 20-24 AWG wire sizes. It's recommended to use wires with a temperature rating of at least 105°C (221°F) and insulation that meets the application's requirements.
