4832.2220 - SCHURTER

Description: 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder Eyelet(s), 30VAC/DC, 500mA, -20°C ~ 70°C

Download 4832.2220 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4832.2220 - SCHURTER - PCB symbol
click to zoom

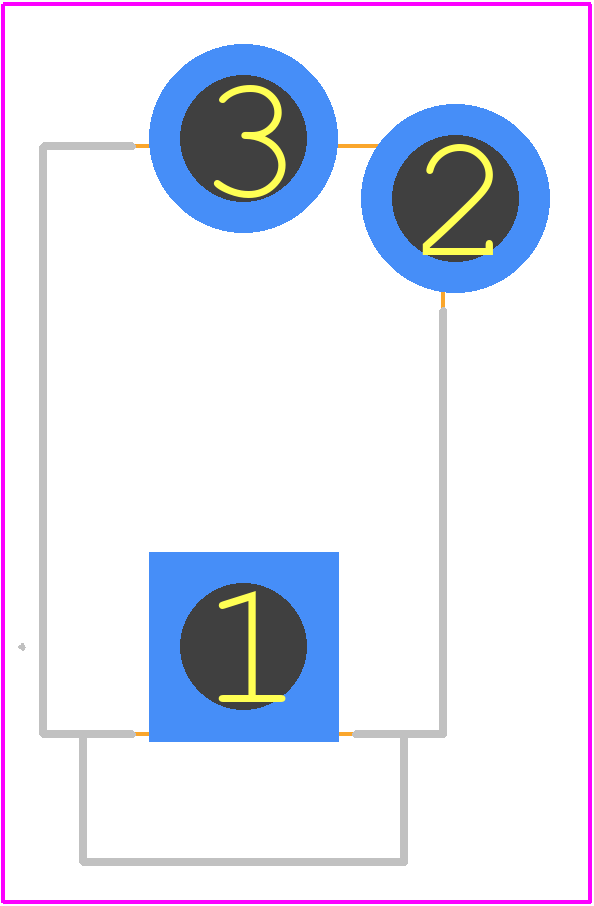

PCB Footprints
4832.2220 - SCHURTER PCB footprint - Other - Other - 4832.2220-2
click to zoom
3D Models
4832.2220 - SCHURTER - 3D model - Other - 4832.2220-2
click to zoom

4832.2220 Details

  • Manufacturer Part Number:

    4832.2220

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    23 Weeks, 6 Days

  • Manufacturer:

    Schurter Electronic Components

  • Body/Shell Style:

    SOCKET

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    3.5MM AUDIO

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    SILVER

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Number of Poles:

    2

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

4832.2220 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and a minimum of vias is recommended. The input and output pins should be separated by a gap of at least 1mm to minimize electromagnetic interference.
  • The 4832.2220 has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. It can withstand voltage transients up to 300V for 1.2ms and has a UVLO threshold of 0.7 x Vin.
  • The 4832.2220 can operate in a temperature range of -40°C to +85°C, with a derating of 1.5% per °C above 60°C.
  • Yes, the 4832.2220 is designed for high-reliability applications and meets the requirements of IEC 62368-1 and UL 62368-1. It also has a MTBF of 1,500,000 hours at 40°C.
  • The 4832.2220 has a built-in EMI filter that meets the requirements of EN 55022 Class B and FCC Part 15 Class B. It also has a shielded metal case to minimize radiated emissions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4832.2220 Overview

Use the download button to access the 4832.2220 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4832., or try a keyword search, such as Audio/RCA Connectors
