- Part Number 4840.2201
- Manufacturer SCHURTER
- Pin Count 3
- Part Category Connector
- Package Category Other

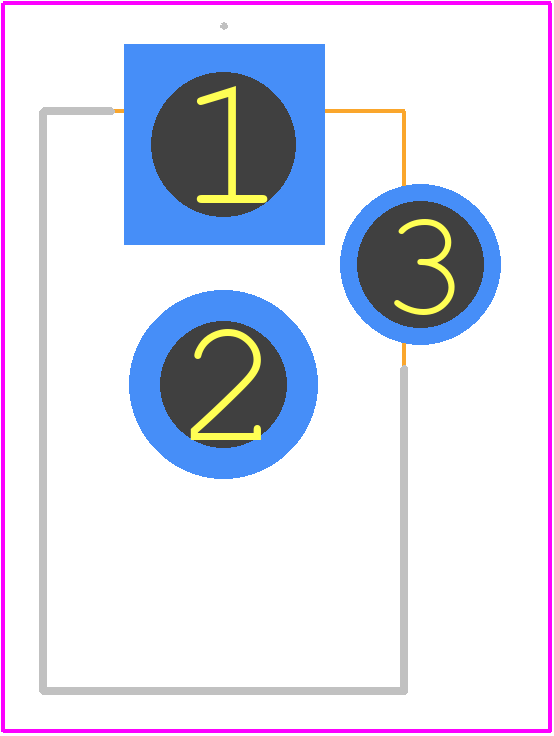

- Footprint Name Other - 4840.2201-1
- Released Date Dec 30, 2022
- Last Modified Date Aug 26, 2025 9:29 PM UTC
- Pinout / Pin List Click Here (Member Only)
4840.2201 Details
-
Manufacturer Part Number:
4840.2201
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Factory Lead Time:
15 Weeks, 3 Days
-
Manufacturer:
Schurter Electronic Components
-
YTEOL:
6.25
-
Body Breadth:
0.433 inch
-
Body Depth:
0.571 inch
4840.2201 Frequently Asked Questions (FAQs)
-
Schurter recommends a PCB layout with a minimum of 2mm clearance around the fuse body to ensure proper heat dissipation and to prevent electrical interference.
-
Yes, the 4840.2201 fuse is designed to withstand high-vibration environments, but it's recommended to follow Schurter's guidelines for mounting and securing the fuse to ensure reliable performance.
-
The 4840.2201 fuse is designed to respond quickly to overvoltage conditions, typically within 1-2 seconds, to protect the circuit from damage.
-
Yes, the 4840.2201 fuse is compatible with lead-free soldering processes, but it's recommended to follow Schurter's guidelines for soldering temperature and time to ensure reliable connections.
-
Schurter recommends storing the 4840.2201 fuse in its original packaging, away from direct sunlight, moisture, and extreme temperatures, and handling it with electrostatic discharge (ESD) protection to prevent damage.
