Schurter provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or by contacting their technical support. It's essential to follow these guidelines to ensure proper mounting and soldering of the component.
While the datasheet provides temperature ratings, it's essential to consider the component's performance in high-temperature environments. Schurter's 4840.2202 is designed to operate up to 125°C, but its performance may degrade above 100°C. It's recommended to consult with Schurter's technical support for specific guidance on high-temperature applications.
Schurter recommends a soldering profile with a peak temperature of 260°C and a dwell time of 10-30 seconds. However, it's essential to consult the datasheet and Schurter's application notes for specific guidance on soldering profiles, as excessive heat can damage the component.
While the datasheet provides mechanical specifications, it's essential to consider the component's performance in high-vibration or shock-prone environments. Schurter's 4840.2202 is designed to withstand moderate vibrations, but it's recommended to consult with Schurter's technical support for specific guidance on extreme environmental conditions.
Schurter recommends using a gentle cleaning process with a soft brush and a mild detergent to avoid damaging the component's surface. It's essential to avoid using harsh chemicals, abrasive materials, or high-pressure cleaning methods, as they can damage the component or compromise its performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4840.2202 Overview

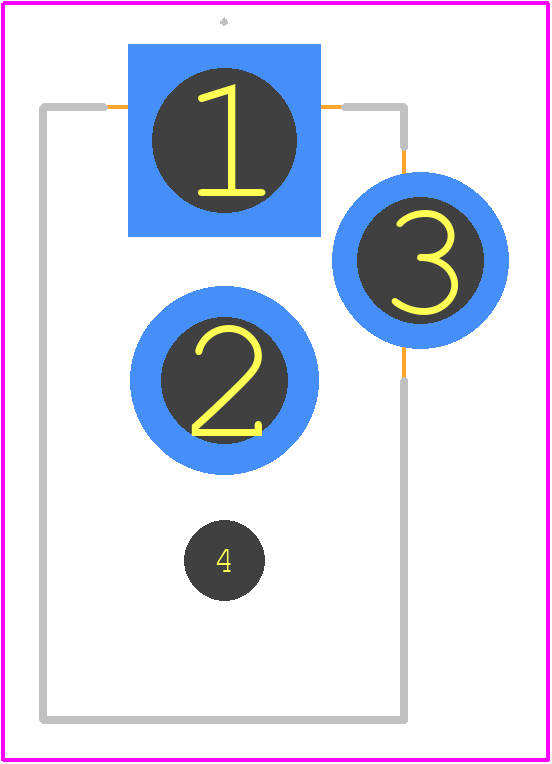

Use the download button to access the 4840.2202 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4840.,
or try a keyword search, such as DC Power Plugs or Jacks
