48405-0003 - Molex

Description: Molex Female 1 Port Right Angle Through Hole Version 3 Type A USB Connector, 30 V, 1.8A 48405 484050003

Download 48405-0003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
48405-0003 - Molex - PCB symbol
click to zoom
PCB Footprints

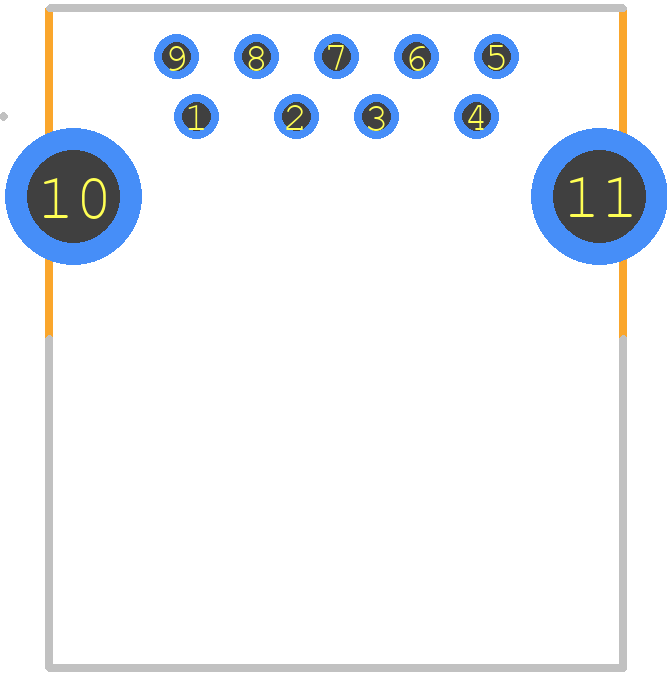

48405-0003 - Molex PCB footprint - Other - Other - 48405-0003
click to zoom
3D Models
48405-0003 - Molex - 3D model - Other - 48405-0003
click to zoom

48405-0003 Details

  • Manufacturer Part Number:

    48405-0003

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8.47

  • Additional Feature:

    SHIELDED

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STAINLESS STEEL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94-HB

48405-0003 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on the 48405-0003 connector is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 48405-0003 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application requirements.
  • The operating temperature range for the 48405-0003 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 48405-0003 connector is compatible with lead-free soldering processes. Molex recommends following the recommended soldering profile and guidelines for lead-free soldering.
  • The mating cycle life of the 48405-0003 connector is 500 cycles minimum, but this can vary depending on the application and usage. Consult with a Molex representative for specific application requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

48405-0003 Overview

Use the download button to access the 48405-0003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 48405, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
