Schurter recommends a symmetrical PCB layout with a solid ground plane and a minimum of 1mm clearance around the component to ensure optimal performance and minimize electromagnetic interference (EMI).
Yes, the 4850.2310 is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g amplitude, and 3 axes. However, it's recommended to consult with Schurter's application engineers for specific vibration requirements.
Yes, the 4850.2310 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C. However, it's recommended to follow Schurter's recommended soldering profile to ensure optimal performance and reliability.
The typical lead time for delivery of the 4850.2310 varies depending on the region, quantity, and availability. It's recommended to check with Schurter's sales team or authorized distributors for the most up-to-date lead time information.
Yes, Schurter offers customization options for the 4850.2310, including modified pinouts, special labeling, and custom packaging. It's recommended to consult with Schurter's application engineers to discuss specific customization requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4850.2310 Overview

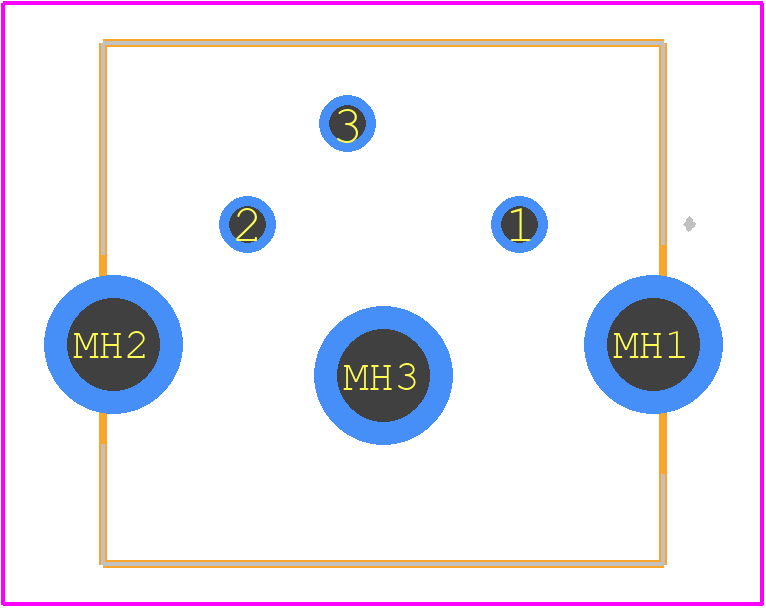

Use the download button to access the 4850.2310 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4850.,
or try a keyword search, such as DIN Connectors
