4850.2410 - SCHURTER

Description: DIN Connectors DIN SOCKET 4 POLE PCB MOUNT

Download 4850.2410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4850.2410 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

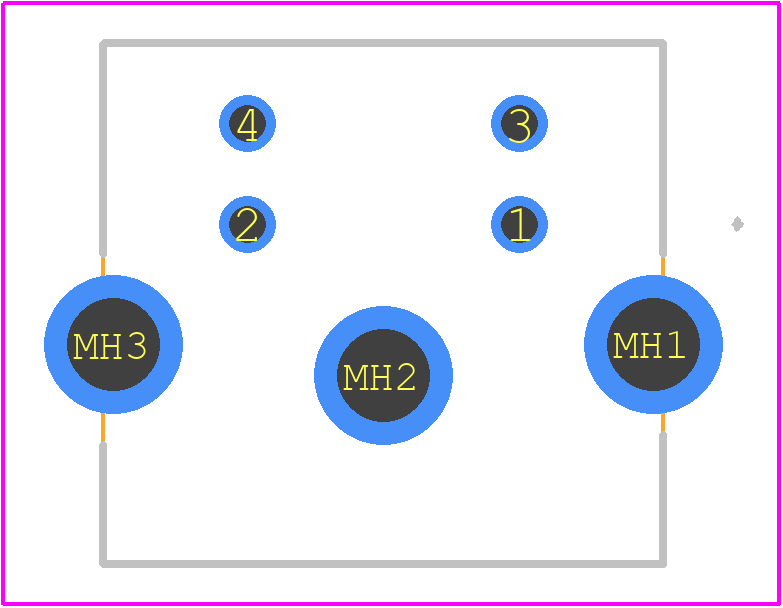

4850.2410 - SCHURTER PCB footprint - Other - Other - 4850.2410-2
click to zoom
3D Models
4850.2410 - SCHURTER - 3D model - Other - 4850.2410-2
click to zoom

4850.2410 Details

  • Manufacturer Part Number:

    4850.2410

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    19 Weeks, 4 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    7.5

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.504 inch

  • Body Depth:

    0.512 inch

  • Body Length:

    0.551 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    DIN CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    YES

  • EMI Shielded:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mounting Option 1:

    GUIDE SLOT

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1 A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

4850.2410 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • No, the 4850.2410 is specifically designed for use with 5x20mm fuses. Using other types of fuses may not ensure proper fit, safety, or performance.
  • While the 4850.2410 is a robust component, it's not specifically designed for high-vibration applications. For such applications, consider using a fuse holder with additional vibration-resistant features or consult with Schurter's technical support.
  • The 4850.2410 is designed for chassis mounting, but it can also be mounted on a PCB using a suitable adapter or PCB mount kit, available from Schurter or third-party suppliers.
  • The operating temperature range for the 4850.2410 is -40°C to 125°C, as specified in the datasheet. However, the fuse itself may have a different temperature rating, so ensure compatibility before selecting a fuse.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4850.2410 Overview

Use the download button to access the 4850.2410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4850., or try a keyword search, such as DIN Connectors
