4850.2950 - SCHURTER

Description: 9-pole, Socket, PCB terminals, DIN Plug/Socket

Download 4850.2950 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4850.2950 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

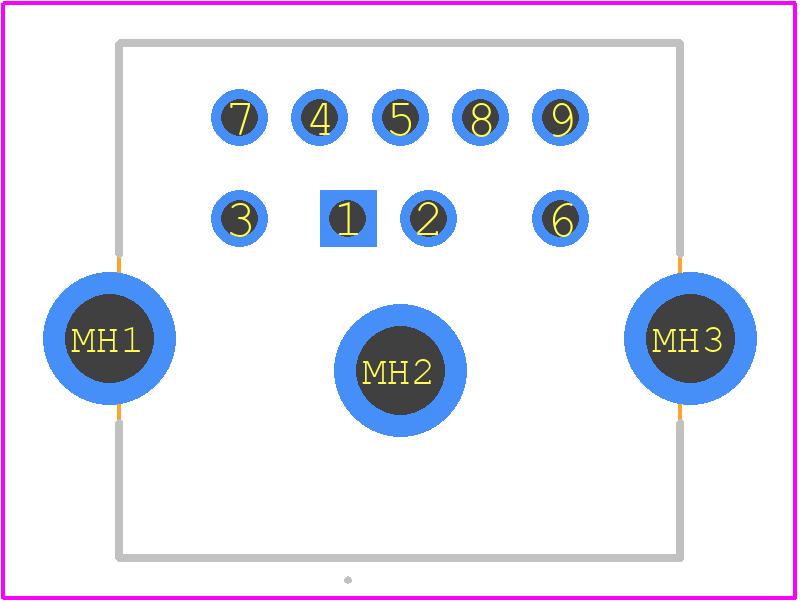

4850.2950 - SCHURTER PCB footprint - Other - Other - 4850.2950-5
click to zoom
3D Models
4850.2950 - SCHURTER - 3D model - Other - 4850.2950-5
click to zoom

4850.2950 Details

  • Manufacturer Part Number:

    4850.2950

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Schurter Electronic Components

  • Additional Feature:

    STANDARD: 94V-0

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.52 inch

  • Body Depth:

    0.506 inch

  • Body Length:

    0.579 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    DIN CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    5000 Cycles

  • EMI Shielded:

    NO

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

4850.2950 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • No, the 4850.2950 is specifically designed for use with 5x20mm fuses. Using other types of fuses may not ensure proper fit, safety, or performance.
  • Yes, the 4850.2950 is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to consult with Schurter's technical support for specific application requirements.
  • The 4850.2950 has a rated operating temperature range of -40°C to 125°C and is suitable for use in humid environments. However, it's recommended to use additional protection measures such as conformal coating or sealing for outdoor or harsh environments.
  • Yes, the 4850.2950 is designed for automated assembly and can be mounted using standard pick-and-place machines. Consult with Schurter's technical support for specific assembly requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4850.2950 Overview

Use the download button to access the 4850.2950 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4850., or try a keyword search, such as DIN Connectors
