48ASDP1S1M2QBT - Grayhill

Description: Switch Slide ON None ON DPDT Top Slide 5A 250VAC 28VDC PC Pins Thru-Hole

Download 48ASDP1S1M2QBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
48ASDP1S1M2QBT - Grayhill - PCB symbol
click to zoom
PCB Footprints

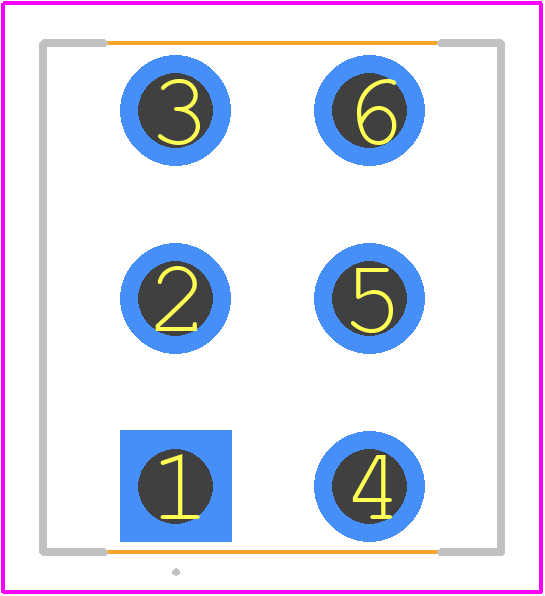

48ASDP1S1M2QBT - Grayhill PCB footprint - Other - Other - 48ASDP1S1M2QBT-3
click to zoom
3D Models
48ASDP1S1M2QBT - Grayhill - 3D model - Other - 48ASDP1S1M2QBT-3
click to zoom

48ASDP1S1M2QBT Details

  • Manufacturer Part Number:

    48ASDP1S1M2QBT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    9.98

  • Body Breadth:

    11.43 mm

  • Body Height:

    6.35 mm

  • Body Length or Diameter:

    12.7 mm

  • Contact (AC) Max Rating R Load:

    5A@125VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact (DC) Max Rating R Load:

    5A@28VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    28 V

  • Electrical Life:

    30000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Positions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    SLIDE SWITCH

  • Terminal Finish:

    SILVER

  • Termination Type:

    SOLDER

48ASDP1S1M2QBT Frequently Asked Questions (FAQs)

  • The recommended torque for assembling the 48ASDP1S1M2QBT switch is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the nut and 1-2 in-lbs (0.113-0.226 Nm) for the screw.
  • Yes, the 48ASDP1S1M2QBT switch is designed to operate in harsh environments, including high temperatures, humidity, and vibration. It meets IP67 and IP69K ratings for dust and water ingress.
  • The typical operating life of the 48ASDP1S1M2QBT switch is 10,000 to 50,000 cycles, depending on the application and environmental conditions.
  • Yes, Grayhill Inc offers customization options for the 48ASDP1S1M2QBT switch, including custom legends, shaft lengths, and electrical configurations. Contact Grayhill's sales team for more information.
  • The recommended cleaning procedure for the 48ASDP1S1M2QBT switch involves using a soft-bristled brush and a mild detergent solution. Avoid using harsh chemicals, abrasive materials, or high-pressure washes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

48ASDP1S1M2QBT Overview

Use the download button to access the 48ASDP1S1M2QBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 48ASD, or try a keyword search, such as Slide Switches
