4900-9024RD63 - TE Connectivity

Description: Power Transformers 115/230 VAC 12VA PCB TRANSFORMER

Download 4900-9024RD63 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4900-9024RD63 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

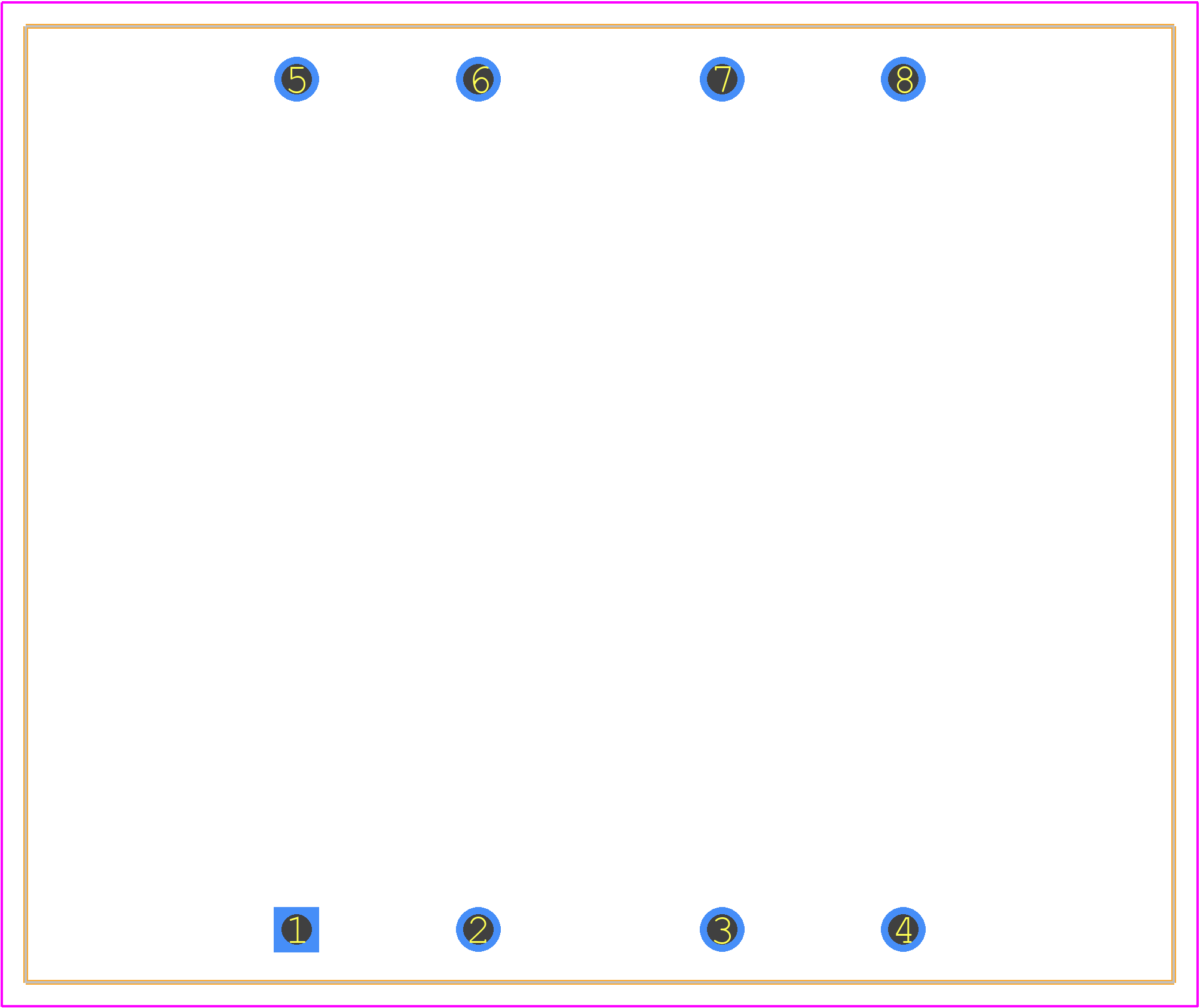

4900-9024RD63 - TE Connectivity PCB footprint - Other - Other - 4900-9024RD63-1
click to zoom
3D Models
4900-9024RD63 - TE Connectivity - 3D model - Other - 4900-9024RD63-1
click to zoom

4900-9024RD63 Details

  • Manufacturer Part Number:

    4900-9024RD63

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Center Tap Feature 1:

    YES

  • Center Tap Feature 2:

    NO

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Packing Method:

    BULK

  • Primary Rating:

    DUAL 115/230V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    12 VA
