49FCT3805APYG - Renesas Electronics

Description: The FCT3805 is a 3.3 volt, non-inverting clock driver built using advanced dual metal CMOS technology. The device consists of two banks of drivers, each with a 1:5 fanout and its own output enable control. The device has a "heartbeat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The FCT3805 offers low capacitance inputs with hysteresis. The FCT3805 is designed for high speed clock distribution where si

Download 49FCT3805APYG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

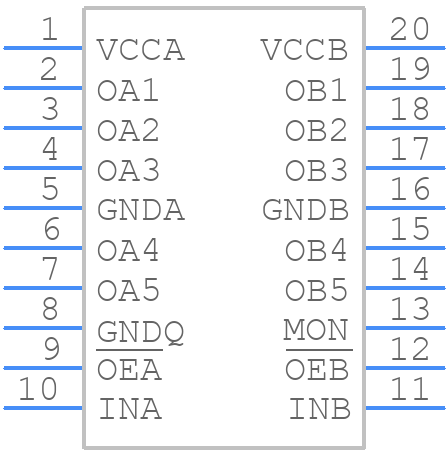

Symbol
49FCT3805APYG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
49FCT3805APYG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PYG20
click to zoom
3D Models
49FCT3805APYG - Renesas Electronics - 3D model - Small Outline Packages - PYG20
click to zoom

49FCT3805APYG Details

  • Manufacturer Part Number:

    49FCT3805APYG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PYG20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Family:

    FCT

  • Input Conditioning:

    SCHMITT TRIGGER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Number of True Outputs:

    5

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    33 mA

  • Prop. Delay@Nom-Sup:

    5 ns

  • Propagation Delay (tpd):

    5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.5 ns

  • Seated Height-Max:

    1.99 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

49FCT3805APYG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 49FCT3805APYG is 4.5V to 5.5V.
  • To ensure reliable data transfer, ensure that the input signals are properly terminated, and the output signals are properly loaded. Also, ensure that the clock frequency is within the recommended range, and the input signals meet the setup and hold time requirements.
  • The maximum clock frequency supported by the 49FCT3805APYG is 100 MHz.
  • During power-up, ensure that the VCC supply is stable before applying clock and input signals. During power-down, ensure that the clock and input signals are removed before powering down the VCC supply.
  • The maximum current rating for the 49FCT3805APYG is 100 mA per pin, with a total device current rating of 500 mA.
