49FCT3805DPYGI - Renesas Electronics

Description: The FCT3805 is a 3.3 volt clock driver built using advanced CMOS technology. The device consists of two banks of drivers, each with a 1:5 fanout and its own output enable control. The device has a "heartbeat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputsand complies with the output specifications in this document. The FCT3805 offers low capacitance inputs.The FCT3805 is designed for high speed clock distribution where signal quality and skew are critical. The FCT3

Download 49FCT3805DPYGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

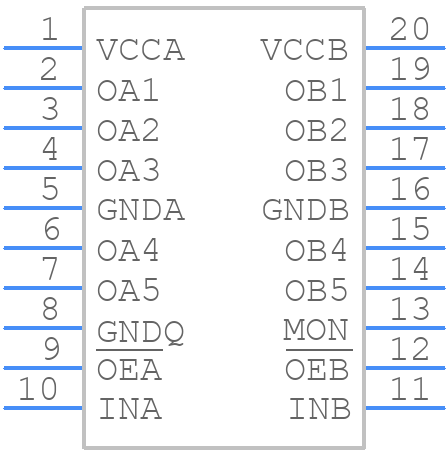

49FCT3805DPYGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
49FCT3805DPYGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SSOP 16-
click to zoom
3D Models
49FCT3805DPYGI - Renesas Electronics - 3D model - Small Outline Packages - SSOP 16-
click to zoom

49FCT3805DPYGI Details

  • Manufacturer Part Number:

    49FCT3805DPYGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PYG20

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    FCT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Number of True Outputs:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    3 ns

  • Propagation Delay (tpd):

    3 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.27 ns

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

49FCT3805DPYGI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 49FCT3805DPYGI is 4.5V to 5.5V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
  • The maximum clock frequency supported by the 49FCT3805DPYGI is 100 MHz.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal design guidelines in the datasheet.
  • The 49FCT3805DPYGI comes in a 48-pin TQFP (Thin Quad Flat Package) with a package size of 12mm x 12mm.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

49FCT3805DPYGI Overview

Use the download button to access the 49FCT3805DPYGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 49FCT, or try a keyword search, such as Clock Drivers
