49FCT805APYGI - Renesas Electronics

Description: The 49FCT805 is a non-inverting buffer/clock driver built using advanced dual metal CMOS technology. Each bank consists of two banks of drivers. Each bank drives five output buffers from a standard TTL compatible input. These devices feature a "heart-beat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The 49FCT805 offers low capacitance inputs and hysteresis. Rail-to-rail output swing improves noise mar

Download 49FCT805APYGI Model

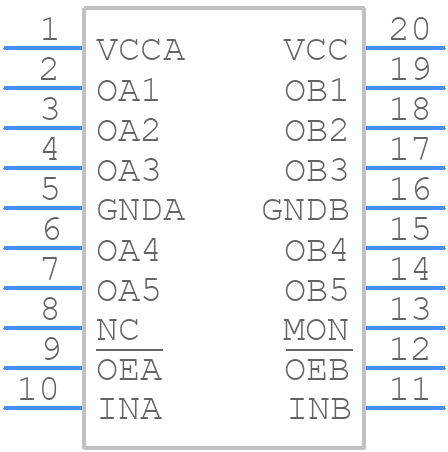

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
49FCT805APYGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PYG20
click to zoom
3D Models
49FCT805APYGI - Renesas Electronics  - 3D model - Small Outline Packages - PYG20
click to zoom

49FCT805APYGI Details

  • Manufacturer Part Number:

    49FCT805APYGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PYG20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    FCT

  • Input Conditioning:

    SCHMITT TRIGGER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.064 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Number of True Outputs:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    8.5 mA

  • Prop. Delay@Nom-Sup:

    5.3 ns

  • Propagation Delay (tpd):

    5.3 ns

  • Same Edge Skew-Max (tskwd):

    0.7 ns

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.29 mm

49FCT805APYGI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 49FCT805APYGI is 4.5V to 5.5V.
  • To ensure reliable data transfer, ensure that the input signals are properly terminated, and the output signals are properly loaded. Also, ensure that the clock frequency is within the recommended range and the data is transmitted in sync with the clock signal.
  • The maximum clock frequency supported by the 49FCT805APYGI is 100 MHz.
  • During power-up, ensure that the VCC supply is stable before applying the clock signal. During power-down, ensure that the clock signal is stopped before removing the VCC supply.
  • The maximum current rating for the 49FCT805APYGI is 100 mA per pin, with a total current limit of 500 mA for the entire device.
