Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
The 4TCE470ML capacitor is designed to handle high-frequency noise and ripple due to its low equivalent series resistance (ESR) and high resonance frequency. However, it's essential to consider the PCB layout and decoupling strategy to minimize the impact of high-frequency noise.
Yes, the 4TCE470ML capacitor is suitable for high-reliability applications due to its robust design, high-quality materials, and rigorous testing procedures. Panasonic also offers a range of reliability tests and screening options to ensure the capacitor meets the specific requirements of the application.
The 4TCE470ML capacitor is designed to withstand high-temperature storage conditions up to 125°C (257°F) for a maximum of 1000 hours. However, it's essential to follow the recommended storage conditions and handling procedures to prevent damage or degradation.
Yes, the 4TCE470ML capacitor is suitable for automotive applications due to its high reliability, robust design, and compliance with automotive industry standards such as AEC-Q200. However, it's essential to consult with Panasonic's technical support team to ensure the capacitor meets the specific requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4TCE470ML Overview

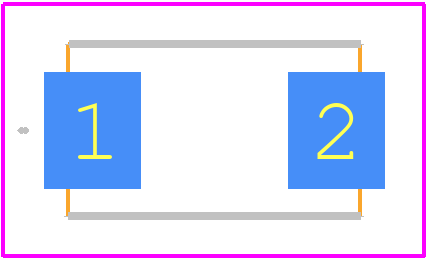

Use the download button to access the 4TCE470ML schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4TCE4,
or try a keyword search, such as Ceramic Capacitors
