5-1415899-4 - TE Connectivity

Description: Body Features: Product Weight .353 OZ | Product Weight 10 G | Insulation Special Features Tracking Index of Relay Base PTI250 | Contact Features: Contact Arrangement 1 Form C (CO) | Contact Material AgSnO2 | Contact Current Rating (Max) 16 AMP | Contact Current Class 16 AMP | Contact Number of Poles 1 | Dimensions: Product Height 15.7 MM | Product Width 12.7 MM | Width Class (Mechanical) 12 – 16 MM | Product Width .5 INCH | Height Class (Mechanical) 15 – 16 MM | Insulation Clearance Class 8 MM | Insulat

Download 5-1415899-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

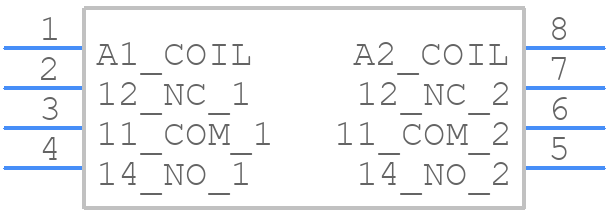

5-1415899-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

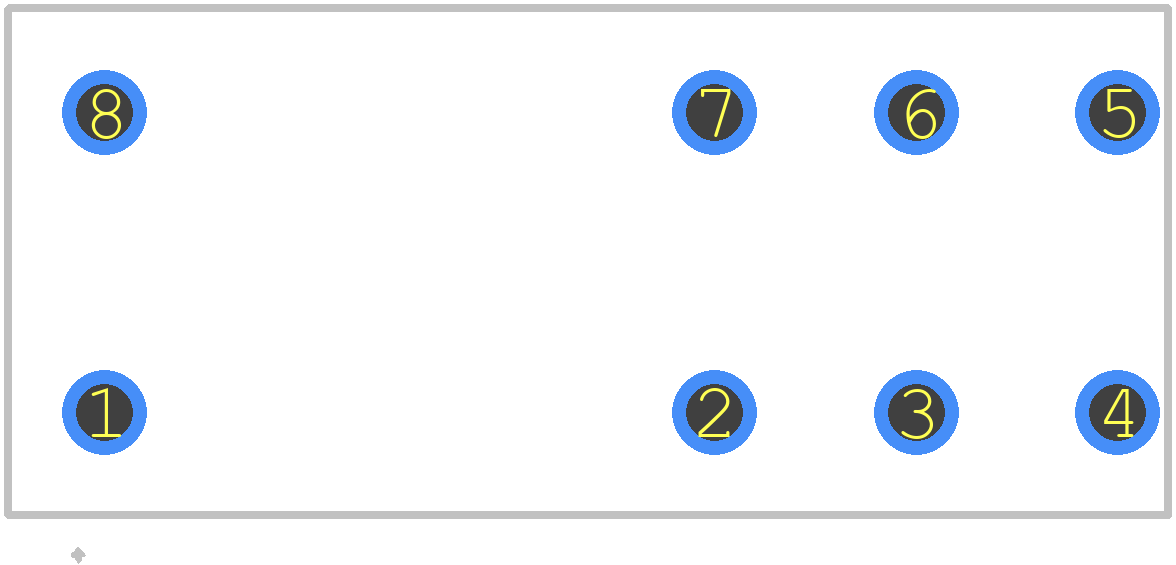

5-1415899-4 - TE Connectivity PCB footprint - Other - Other - RZ03(1-Form-C)
click to zoom
3D Models
5-1415899-4 - TE Connectivity - 3D model - Other - RZ03(1-Form-C)
click to zoom

5-1415899-4 Details

  • Manufacturer Part Number:

    5-1415899-4

  • Brand Name:

    Schrack

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Current(DC)-Max:

    0.033 A

  • Coil Operate Voltage(DC):

    8.4 V

  • Coil Power:

    400 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    360 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    16A@400VAC

  • Contact Current(AC)-Max:

    16 A

  • Contact Current(DC)-Max:

    16 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:

    AC

  • Dielectric Strength Between Coil and Contacts:

    5000 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • Electrical Life:

    10000 Cycle(s)

  • End Contact Material:

    SILVER TIN OXIDE

  • Mounting Feature:

    PANEL MOUNT

  • Operate Time:

    14 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29mm x 12.7mm x 15.7mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    12 ms

  • Sealing:

    RT2

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    10 g
