5-1418363-3 footprint, schematic symbol and 3D model by TE Connectivity

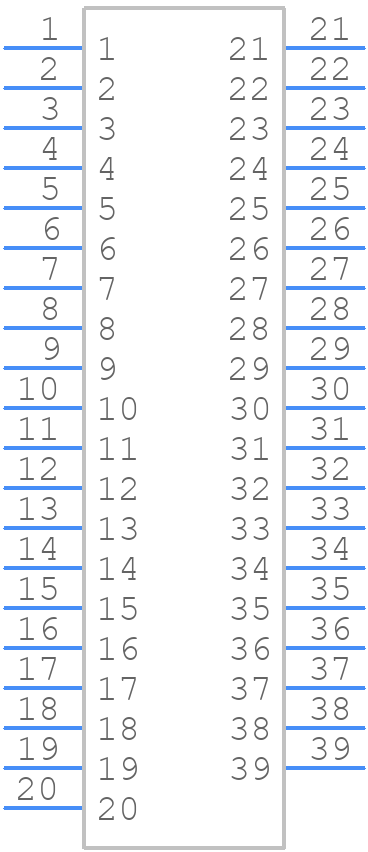

Symbol

click to zoom

PCB Footprints

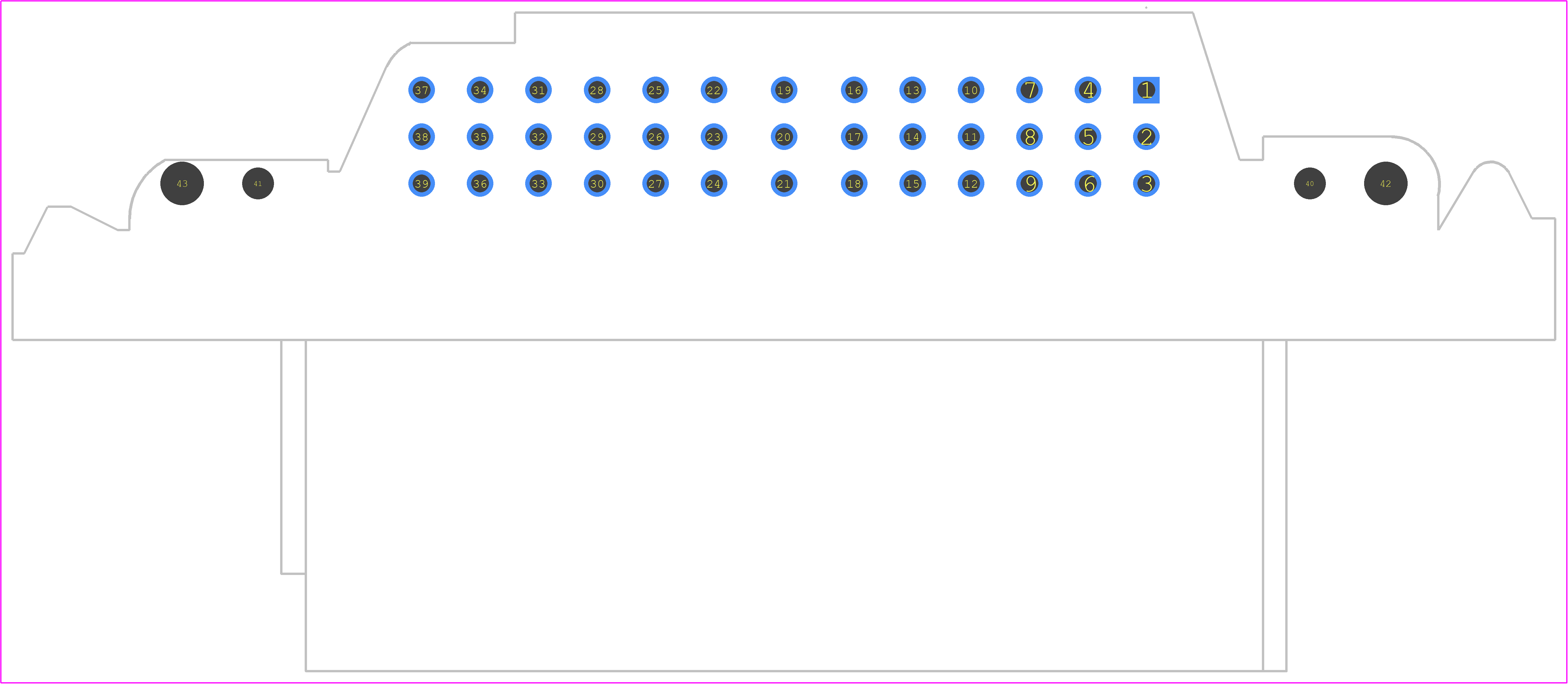

5-1418363-3 - TE Connectivity PCB footprint - Other - Other - 5-1418363-3-6

click to zoom

3D Models

5-1418363-3 - TE Connectivity - 3D model - Other - 5-1418363-3-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5-1418363-3
Part Number 5-1418363-3
Manufacturer TE Connectivity
Pin Count 39
Part Category Connector
Package Category Other
Footprint Name Other - 5-1418363-3-6
Released Date May 25, 2020
Last Modified Date Dec 24, 2024 12:26 PM UTC
Pinout / Pin List Click Here (Member Only)

5-1418363-3 Details

Manufacturer Part Number:
5-1418363-3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
16 Weeks, 2 Days
Manufacturer:
TE Connectivity
YTEOL:
8
Additional Feature:
LATCHED
Body Breadth:
2.11 inch
Body Length:
5.196 inch
Body/Shell Style:
PLUG
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
40A
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
3
Operating Temperature-Max:
140 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization Key:
POLARIZED
Rated Current (Signal):
40 A
Rated Voltage:
36 V
Terminal Pitch:
6 mm
Termination Type:
SOLDER
Total Number of Contacts:
39

5-1418363-3 Frequently Asked Questions (FAQs)

The recommended torque specification for the 5-1418363-3 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure proper mating and to prevent damage to the connector.
Yes, the 5-1418363-3 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibrations up to 10G.
The 5-1418363-3 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance.
The 5-1418363-3 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
Yes, the 5-1418363-3 connector is designed to be compatible with other TE Connectivity products, including cables, backshells, and contacts. This ensures a seamless integration into your system design.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

5-1418363-3 Overview

Use the download button to access the 5-1418363-3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 5-141, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
