- Part Number 5-1437532-8
- Manufacturer TE Connectivity
- Pin Count 32
- Part Category Connector
- Package Category Dual-In-Line Sockets

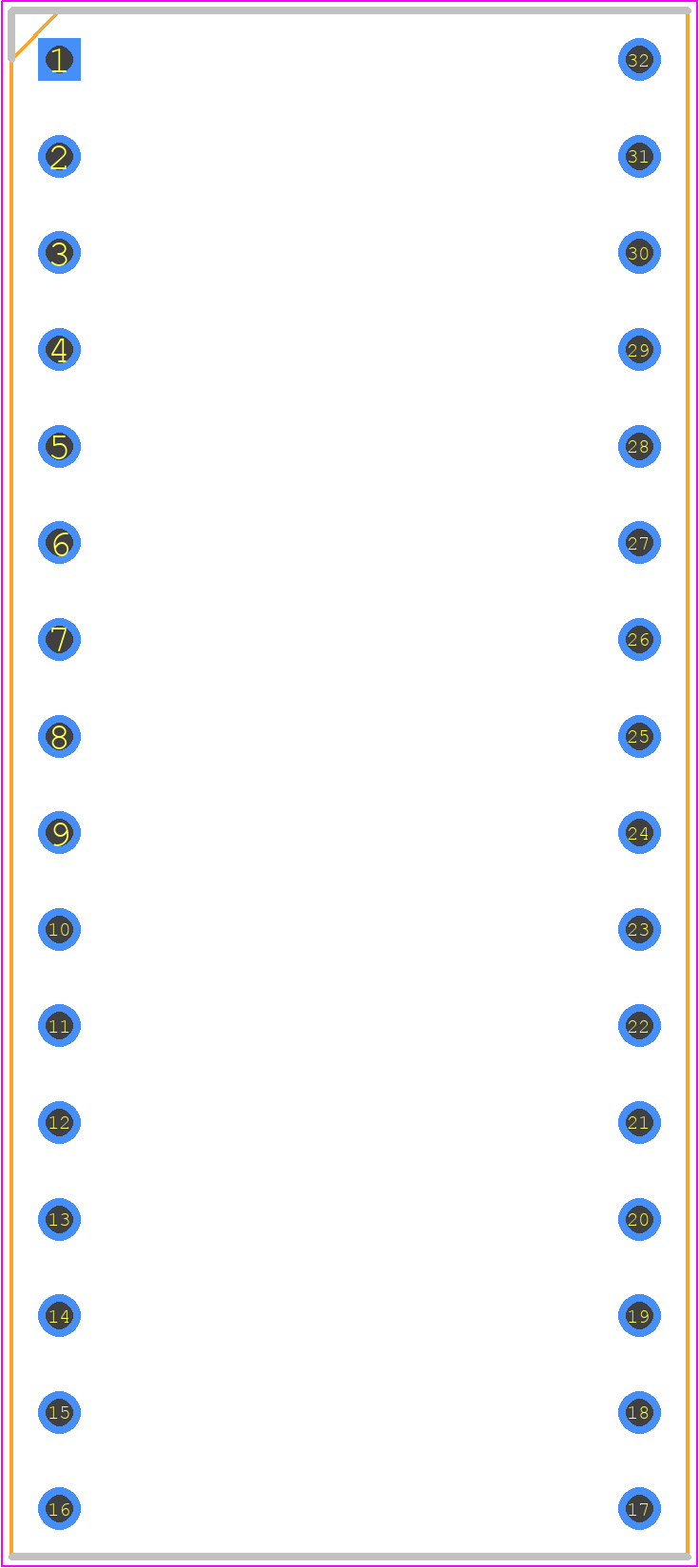

- Footprint Name Dual-In-Line Sockets - 532-AG10D
- Released Date Jul 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
5-1437532-8 Details
-
Manufacturer Part Number:
5-1437532-8
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Additional Feature:
STANDARD: UL 94V-0
-
Body Depth:
0.18 inch
-
Body Length:
1.6 inch
-
Contact Finish Mating:
NOT APPLICABLE
-
Contact Finish Termination:
GOLD
5-1437532-8 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 5-1437532-8 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some adjustments. However, it's crucial to consult with TE Connectivity or a qualified engineer to ensure the connector is used within its specified ratings and to avoid any potential reliability issues.
-
The 5-1437532-8 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector operates within its specified ratings.
-
The 5-1437532-8 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you plan to use the connector in an environment with high humidity or exposure to chemicals, it's recommended to consult with TE Connectivity or a qualified engineer to determine the best solution for your specific application.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
5-1437532-8 Overview

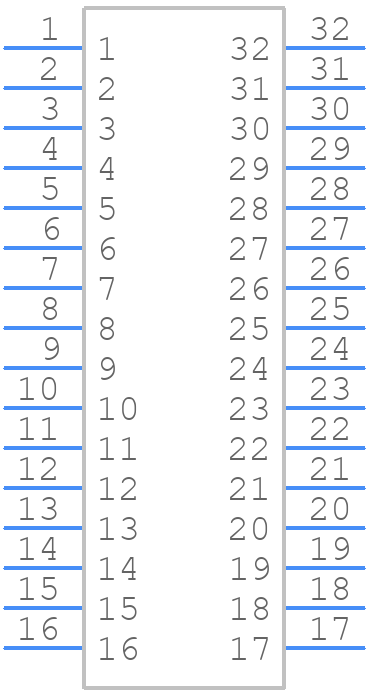

Use the download button to access the 5-1437532-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5-143,
or try a keyword search, such as Sockets and Chip Carriers
