Part Image

5-146256-5 - TE Connectivity

Description: AMP Modu II Breakaway Hdr,vertical,10w

Download 5-146256-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

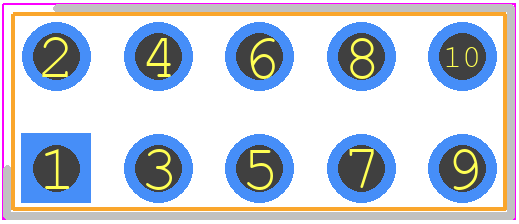

5-146256-5 - TE Connectivity PCB footprint - Header, Vertical - Header, Vertical - 5-146256-5
click to zoom
3D Models
5-146256-5 - TE Connectivity  - 3D model - Header, Vertical - 5-146256-5
click to zoom

5-146256-5 Details

  • Manufacturer Part Number:

    5-146256-5

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    0.64

  • YTEOL:

    9.1

  • Body Breadth:

    0.192 inch

  • Body Depth:

    0.09 inch

  • Body Length:

    0.484 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    CSA, LR, U

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5-146256-5 Overview

Use the download button to access the 5-146256-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5-146, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to 5-146256-5

Showing 0 results

5-146256-5 Alternates

Showing results

Image Part Number Model
Part Image 54102-G30-05LF Amphenol FCi

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE

Part Image 54102-T30-05 Amphenol FCi

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Part Image 146250-5 TE's AMP

10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Part Image 802-90-010-10-002 Mill-Max Mfg Corp

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

Part Image 9100-31-205-01 Methode Electronics Inc

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
