5-2172071-2 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

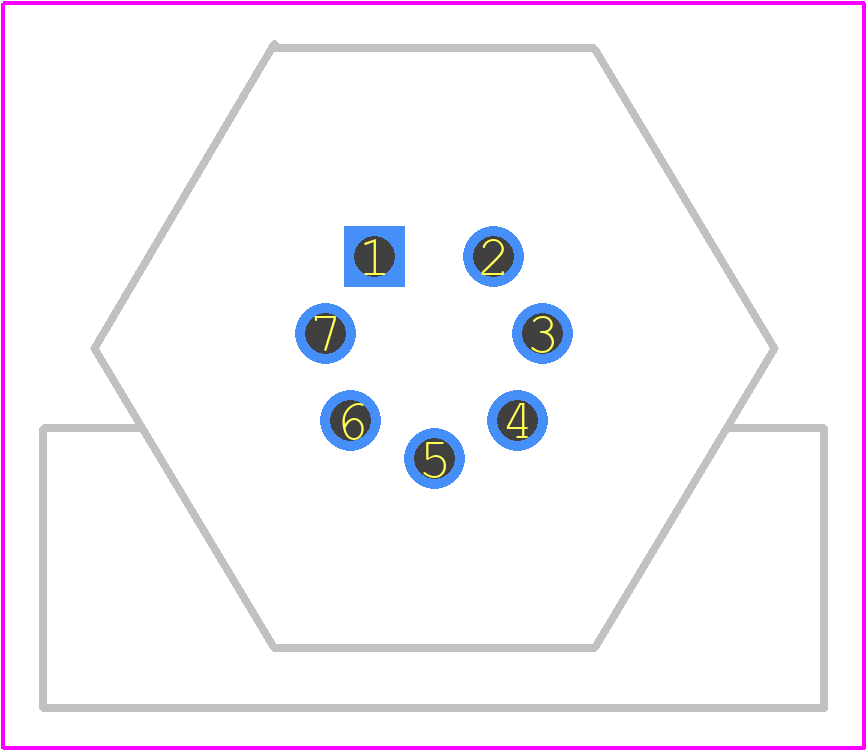

PCB Footprints

5-2172071-2 - TE Connectivity PCB footprint - Other - Other - 5-2172071-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5-2172071-2
Part Number 5-2172071-2
Manufacturer TE Connectivity
Pin Count 7
Part Category Connector
Package Category Other
Footprint Name Other - 5-2172071-2
Released Date Mar 13, 2022
Last Modified Date Dec 15, 2024 11:07 PM UTC
Pinout / Pin List Click Here (Member Only)

5-2172071-2 Details

Manufacturer Part Number:
5-2172071-2
Brand Name:
TE Connectivity
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Factory Lead Time:
38 Weeks, 5 Days
Manufacturer:
TE Connectivity
Body/Shell Style:
RECEPTACLE
Connector Type:
CIRCULAR CONNECTOR
Contact Design:
PREASSEM CONN
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
2A
Mixed Contacts:
NO
Mounting Type:
PANEL
Number Of Connectors:
ONE
Number of Ports:
1
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization:
A
Polarization Key:
POLARIZED
Rated Current (Signal):
2 A
Shell Finish:
NICKEL
Shell Material:
BRASS
Shell Size:
12
Total Number of Contacts:
8

5-2172071-2 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 5-2172071-2 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate other wire sizes with some adjustments. However, it's crucial to consult with TE Connectivity or a qualified engineer to ensure the connector is used within its specified ratings and to avoid any potential electrical or mechanical issues.
The 5-2172071-2 connector is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector operates within its specified ratings.
The 5-2172071-2 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you plan to use the connector in an environment with high humidity or exposure to chemicals, it's recommended to consult with TE Connectivity or a qualified engineer to determine the best solution for your specific application.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

5-2172071-2 Overview

Use the download button to access the 5-2172071-2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 5-217, or try a keyword search, such as Other Circular Connectors
