5-2337992-5 - TE Connectivity

Description: Body Features: LED Color (Bottom Left) None | Modular Jack Latch Orientation Inverted - Latch Up | PCB Ground Tab Location 3.05 MM | LED Color (Bottom Right) None | Connector Profile Standard | LED Color (Top Left) Green | PCB Retention Feature Material LCP | Shield Material Brass | Insulator Material LCP | Shield Plating Finish Matte | PCB Ground Tab Location .12 INCH | LED Color (Top Right) Yellow | Shield Plating Material Nickel | Configuration Features: Number of PCB Ground Tabs 2 | Port Configuration S

Download 5-2337992-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

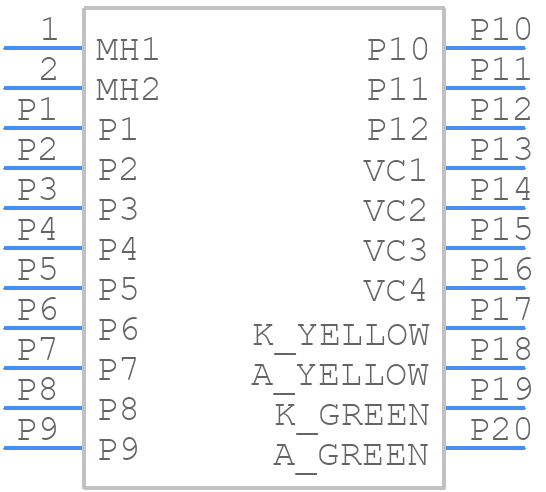

5-2337992-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

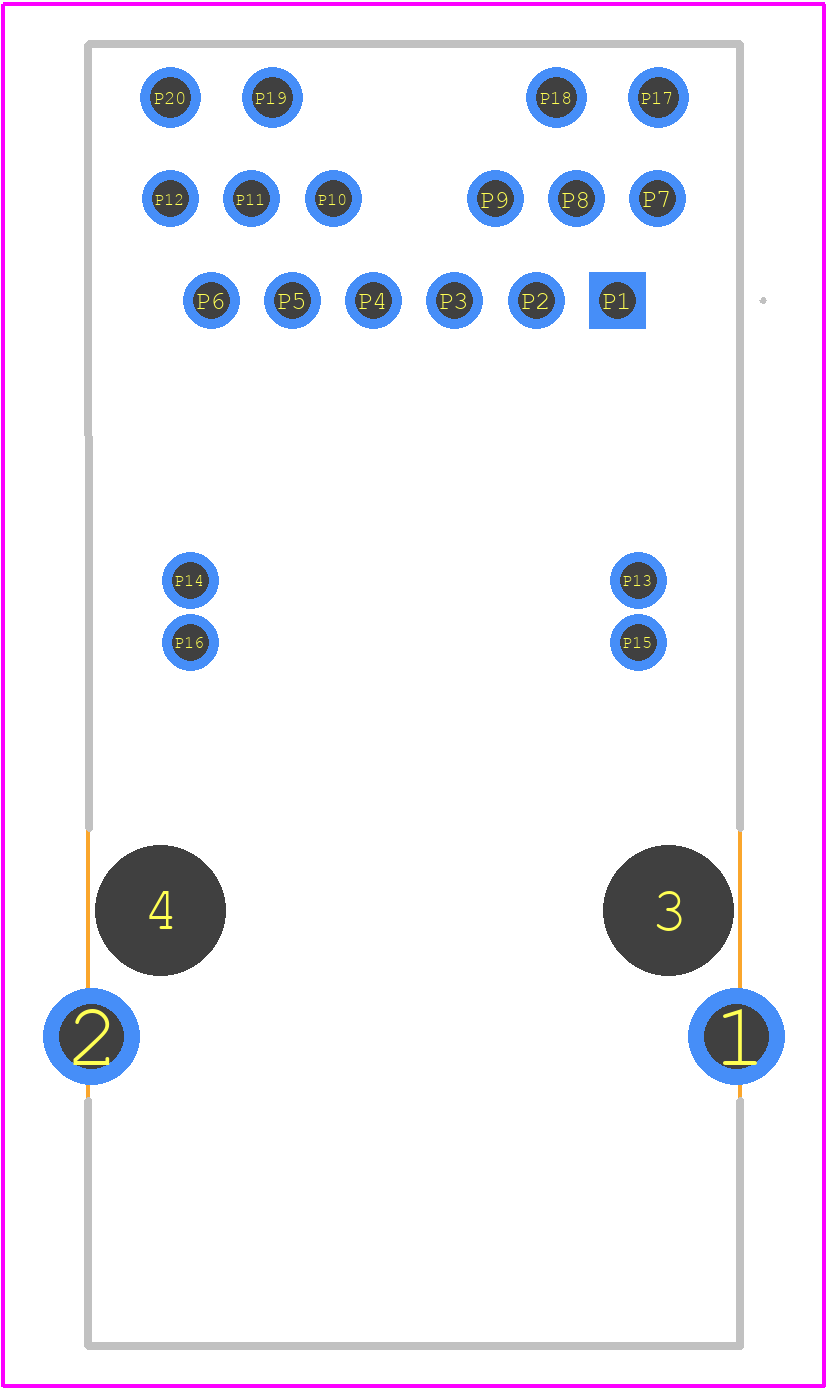

5-2337992-5 - TE Connectivity PCB footprint - Other - Other - 5-2337992-5-4
click to zoom
3D Models
5-2337992-5 - TE Connectivity - 3D model - Other - 5-2337992-5-4
click to zoom

5-2337992-5 Details

  • Manufacturer Part Number:

    5-2337992-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Board Mounting Option:

    BOARD LOCK

  • Body Depth:

    0.535 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

5-2337992-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5-2337992-5 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 5-2337992-5 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's not recommended for direct exposure to harsh environments, such as high temperatures, humidity, or chemical exposure. Additional protection or sealing may be required for such applications.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with the 5-2337992-5 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during insertion. Consult with TE Connectivity or a qualified engineer for guidance on using non-recommended wire sizes.
  • Yes, when designing the PCB layout for the 5-2337992-5 connector, ensure that the footprint matches the connector's dimensions, and the PCB material can withstand the connector's operating temperature range. Additionally, consider the connector's keep-out zones and ensure that no components or traces are placed in these areas to prevent interference or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5-2337992-5 Overview

Use the download button to access the 5-2337992-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5-233, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
