5-2337992-8 - TE Connectivity

Description: TE CONNECTIVITY - 5-2337992-8 - Modular Connector, RJ45 Jack, 1 x 1 Port, 8P8C, Cat5e, Through Hole Mount

Download 5-2337992-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

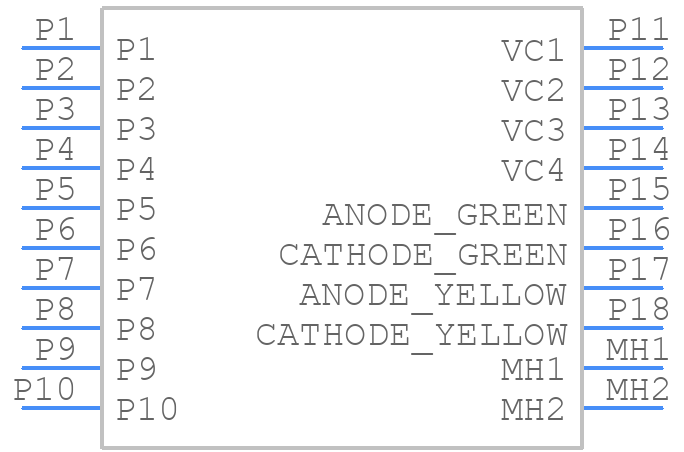

Symbol
5-2337992-8 - TE Connectivity - PCB symbol
click to zoom

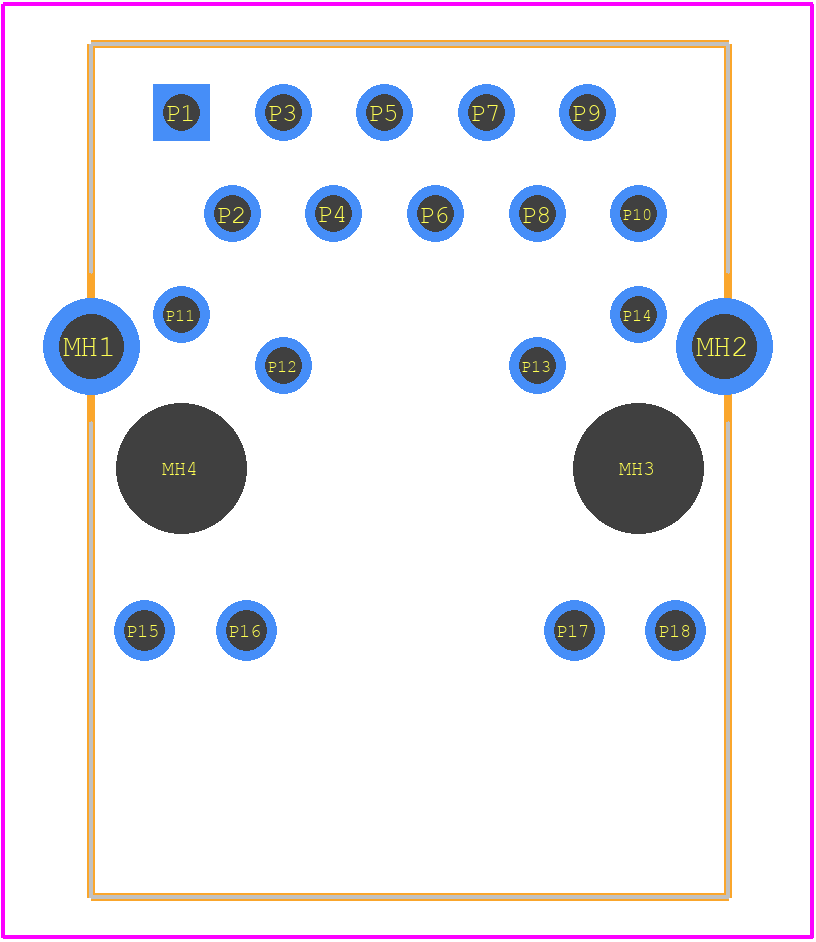

PCB Footprints
5-2337992-8 - TE Connectivity PCB footprint - Other - Other - 5-2337992-8-2
click to zoom
3D Models
5-2337992-8 - TE Connectivity - 3D model - Other - 5-2337992-8-2
click to zoom

5-2337992-8 Details

  • Manufacturer Part Number:

    5-2337992-8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.537 inch

  • Body Depth:

    0.537 inch

  • Body Length:

    0.626 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    5

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    MIXED

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

5-2337992-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 5-2337992-8 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque specifications.
  • Yes, the 5-2337992-8 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 2 standard for vibration resistance, making it suitable for applications with high vibration levels.
  • The 5-2337992-8 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95% RH. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific requirements of your application.
  • The 5-2337992-8 connector is rated for a minimum of 500 mating cycles. However, this may vary depending on the specific application, usage, and environmental conditions.
  • The 5-2337992-8 connector is designed to be compatible with other TE Connectivity products and some third-party connectors. However, it's crucial to verify compatibility and consult TE Connectivity's documentation before using the connector with other products.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5-2337992-8 Overview

Use the download button to access the 5-2337992-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5-233, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
