5-2337995-1 - TE Connectivity

Description: Body Features: LED Color (Bottom Left) Green | PCB Ground Tab Location .61 INCH | PCB Ground Tab Location -4.57 MM | LED Color (Top Right) Yellow | Shield Material Brass | PCB Ground Tab Location .45 INCH | LED Color (Bottom Right) Yellow | PCB Ground Tab Location 11.43 MM | PCB Ground Tab Location 15.49 MM | Modular Jack Latch Orientation Inverted (Top) / Standard (Bottom) | Shield Plating Material Nickel | PCB Ground Tab Location -.18 INCH | Connector Profile Standard | PCB Retention Feature Material LCP

Download 5-2337995-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

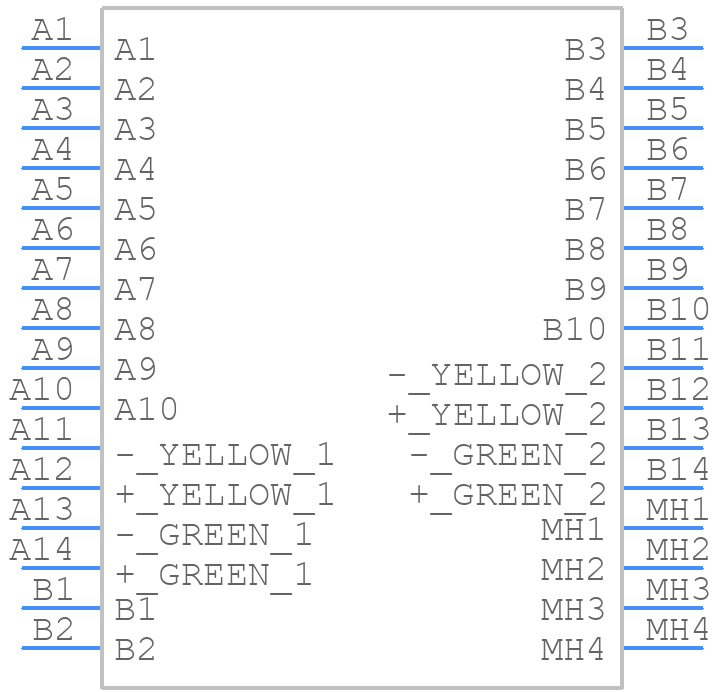

5-2337995-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

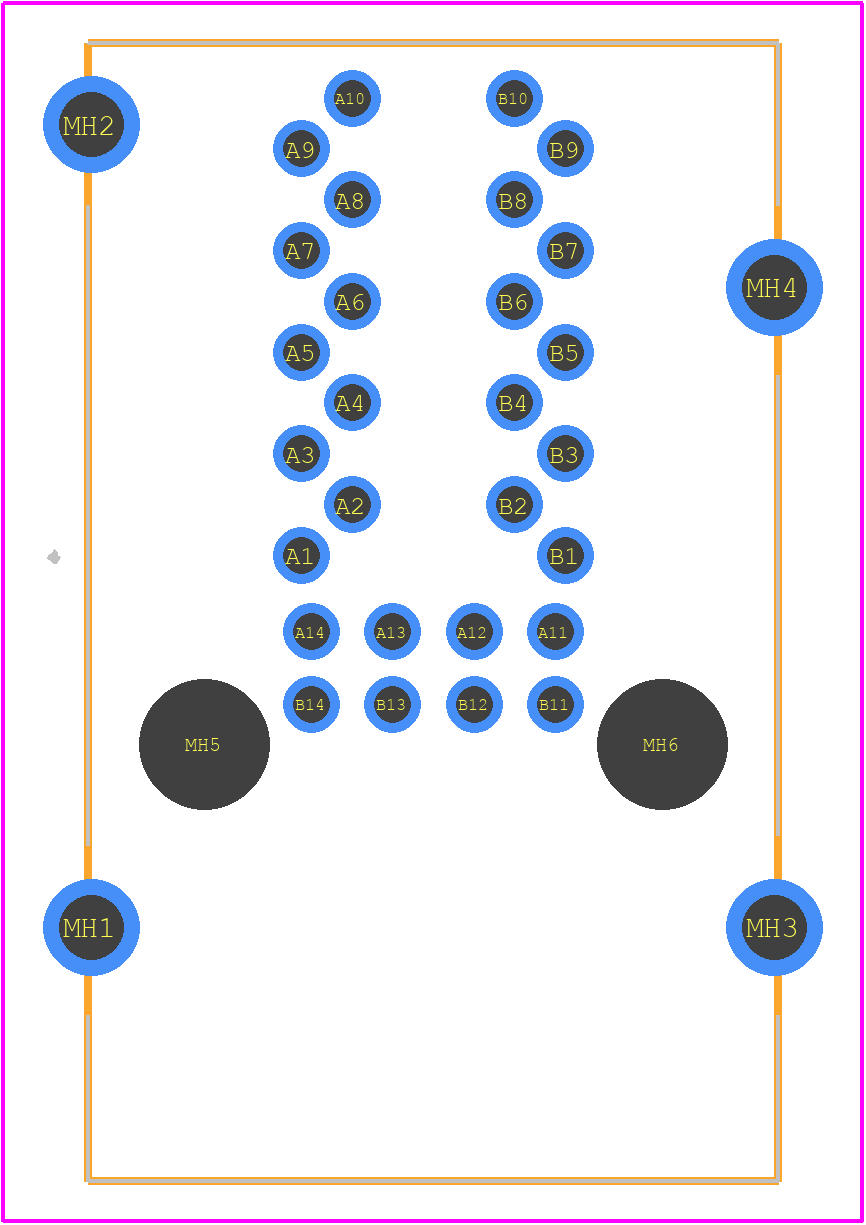

5-2337995-1 - TE Connectivity PCB footprint - Other - Other - 5-2337995-1-3
click to zoom
3D Models
5-2337995-1 - TE Connectivity - 3D model - Other - 5-2337995-1-3
click to zoom

5-2337995-1 Details

  • Manufacturer Part Number:

    5-2337995-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Board Mounting Option:

    BOARD LOCK

  • Body Depth:

    1.006 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

5-2337995-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5-2337995-1 connector is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 5-2337995-1 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to ensure the connector remains watertight in outdoor environments.
  • The operating temperature range for the 5-2337995-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 5-2337995-1 connector. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the required performance specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5-2337995-1 Overview

Use the download button to access the 5-2337995-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5-233, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
