5.0SMDJ120A - LITTELFUSE

Description: ESD Protection Diodes / TVS Diodes 5kW 120V 5% Uni-Directional

Download 5.0SMDJ120A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5.0SMDJ120A - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

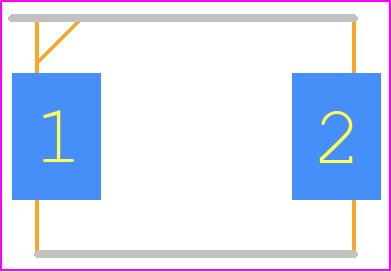

5.0SMDJ120A - LITTELFUSE PCB footprint - Diodes Moulded - Diodes Moulded - DO-214AB (SMC J-BEND) -2020
click to zoom
3D Models
5.0SMDJ120A - LITTELFUSE - 3D model - Diodes Moulded - DO-214AB (SMC J-BEND) -2020
click to zoom

5.0SMDJ120A Details

  • Manufacturer Part Number:

    5.0SMDJ120A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DO-214AB

  • Pin Count:

    2

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8

  • Additional Feature:

    EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED

  • Breakdown Voltage-Max:

    147 V

  • Breakdown Voltage-Min:

    133 V

  • Breakdown Voltage-Nom:

    140 V

  • Clamping Voltage-Max:

    193 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-J2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    5000 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    6.5 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2; IEC-61000-4-4

  • Rep Pk Reverse Voltage-Max:

    120 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

5.0SMDJ120A Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for the 5.0SMDJ120A can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
  • To ensure reliability in high-temperature applications, it is recommended to derate the power rating of the 5.0SMDJ120A according to the temperature derating curve provided in the datasheet. Additionally, ensure that the device is soldered correctly and that the PCB is designed to minimize thermal resistance.
  • While the 5.0SMDJ120A is rated for 120V, it can be used in non-standard voltage applications with caution. However, it is essential to ensure that the device is not subjected to voltages exceeding its maximum rating, and that the power rating is derated accordingly.
  • To select the correct TVS diode, consider the following factors: working voltage, peak pulse current, and response time. The 5.0SMDJ120A is suitable for applications requiring a 120V working voltage and a peak pulse current of 5000A.
  • The 5.0SMDJ120A provides ESD protection up to ±30kV air discharge and ±30kV contact discharge, making it suitable for applications requiring high ESD immunity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5.0SMDJ120A Overview

Use the download button to access the 5.0SMDJ120A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5.0SM, or try a keyword search, such as Transient Suppressors
