Description:The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, Bi-directional
The recommended footprint and land pattern for the 5.0SMDJ12CAS can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider the maximum junction temperature (Tj) and storage temperature (Tstg) ratings. Additionally, it is recommended to perform thermal analysis and testing to validate the design.
Yes, the 5.0SMDJ12CAS is AEC-Q101 qualified, which means it meets the requirements for automotive applications. However, it is recommended to consult with Littelfuse or a qualified engineer to ensure that the device meets the specific requirements of the application.
To select the correct TVS diode, consider the following factors: voltage rating, peak pulse current, clamping voltage, and response time. It is also recommended to consult with Littelfuse or a qualified engineer to ensure that the device meets the specific requirements of the application.
The main difference between the 5.0SMDJ12CAS and other TVS diodes in the same series is the voltage rating and peak pulse current rating. The 5.0SMDJ12CAS has a voltage rating of 5V and a peak pulse current rating of 12kA, whereas other devices in the series may have different voltage and current ratings.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5.0SMDJ12CAS Overview

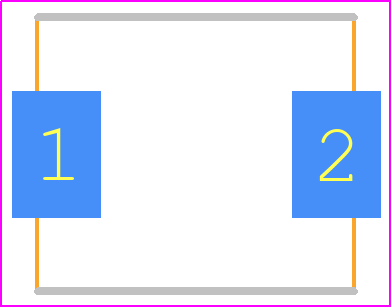

Use the download button to access the 5.0SMDJ12CAS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5.0SM,
or try a keyword search, such as Transient Suppressors
