Description:The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, Bi-directional
The recommended footprint and land pattern for the 5.0SMDJ28CAS can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
To ensure reliability in high-temperature applications, it is recommended to follow the derating curves provided in the datasheet, and to consider the maximum junction temperature (Tj) of 150°C. Additionally, ensure that the device is properly soldered and that the PCB is designed to minimize thermal resistance.
Yes, the 5.0SMDJ28CAS is AEC-Q101 qualified, which means it meets the stringent requirements for automotive applications. However, it is recommended to consult with Littelfuse or an authorized distributor for specific automotive-grade products and to ensure compliance with relevant industry standards.
The maximum surge current rating for the 5.0SMDJ28CAS is 5000 A, as specified in the datasheet. This rating is based on an 8/20 μs waveform, and the device is designed to withstand multiple surges without degradation.
To select the correct TVS diode, consider the following factors: working voltage, peak pulse current, and clamping voltage. The 5.0SMDJ28CAS is suitable for applications requiring a working voltage of 5.0 V, peak pulse current of 5000 A, and a clamping voltage of 28 V. Consult the datasheet and application notes for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5.0SMDJ28CAS Overview

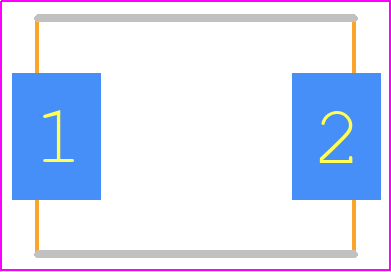

Use the download button to access the 5.0SMDJ28CAS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5.0SM,
or try a keyword search, such as Transient Suppressors
