The recommended footprint and land pattern for the 5.0SMDJ54A can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider the maximum junction temperature (Tj) of 150°C. Additionally, ensure that the device is properly soldered and that the PCB is designed to minimize thermal resistance.
Yes, the 5.0SMDJ54A is AEC-Q101 qualified, which means it meets the stringent requirements for automotive applications. However, it is recommended to consult with Littelfuse or an authorized distributor to ensure that the specific device meets the requirements of the specific automotive application.
To select the correct TVS diode, consider the following factors: the maximum voltage and current of the circuit, the type of transient protection required (e.g. lightning, ESD, etc.), and the physical constraints of the application (e.g. size, lead-free, etc.). Littelfuse provides a TVS Diode Selection Guide that can help with the selection process.
The main difference between the 5.0SMDJ54A and other TVS diodes in the same series is the breakdown voltage (Vbr) and the maximum peak pulse current (Ipp). The 5.0SMDJ54A has a Vbr of 54V and an Ipp of 5000A, making it suitable for specific applications. Consult the datasheet or Littelfuse's website for a comparison of the different TVS diodes in the series.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
5.0SMDJ54A Overview

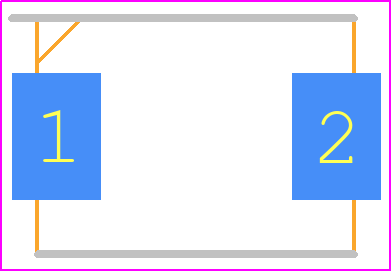

Use the download button to access the 5.0SMDJ54A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5.0SM,
or try a keyword search, such as Transient Suppressors
