5.0SMDJ60CA/TR13 - Yageo Group

Description: 96.8V Clamp 51.7A Ipp Tvs Diode Surface Mount DO-214AB (SMC)

Download 5.0SMDJ60CA/TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5.0SMDJ60CA/TR13 - Yageo Group - PCB symbol
click to zoom
PCB Footprints

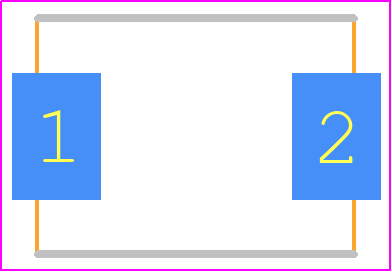

5.0SMDJ60CA/TR13 - Yageo Group PCB footprint - Diodes Moulded Non Polarised - Diodes Moulded Non Polarised - SMC/DO-214AB
click to zoom
3D Models
5.0SMDJ60CA/TR13 - Yageo Group - 3D model - Diodes Moulded Non Polarised - SMC/DO-214AB
click to zoom

5.0SMDJ60CA/TR13 Details

  • Manufacturer Part Number:

    5.0SMDJ60CA/TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMC, 2 PIN

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    20 Weeks, 2 Days

  • Date Of Intro:

    2019-04-29

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    6

  • Additional Feature:

    EXCELLENT CLAMPING CAPABILITY, PRSM-MIN, UL CERTIFIED

  • Breakdown Voltage-Max:

    73.7 V

  • Breakdown Voltage-Min:

    66.7 V

  • Breakdown Voltage-Nom:

    70.2 V

  • Clamping Voltage-Max:

    96.8 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Power Dissipation-Max:

    6.5 W

  • Reference Standard:

    IEC-61000-4-2; MIL-STD-750

  • Rep Pk Reverse Voltage-Max:

    60 V

  • Reverse Current-Max:

    2 µA

  • Reverse Test Voltage:

    60 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

5.0SMDJ60CA/TR13 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 5.0SMDJ60CA/TR13 is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask clearance of 0.1mm. It's recommended to follow the IPC-7351 standard for surface mount land patterns.
  • The 5.0SMDJ60CA/TR13 has a maximum operating temperature of 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated and that the application does not exceed the maximum rated temperature.
  • Yes, the 5.0SMDJ60CA/TR13 is compatible with lead-free soldering processes. YAGEO Corporation ensures that their components meet the requirements of the RoHS directive and are compatible with lead-free soldering processes.
  • The typical failure mode of the 5.0SMDJ60CA/TR13 is a short circuit or a parametric shift due to excessive voltage, current, or temperature stress. It's essential to follow the recommended operating conditions and derating guidelines to minimize the risk of failure.
  • Yes, the 5.0SMDJ60CA/TR13 is suitable for high-reliability applications. YAGEO Corporation follows strict quality control and testing procedures to ensure that their components meet the requirements of high-reliability applications.
